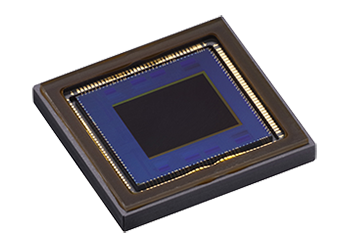

LI5020 5m CMOS Sensor
Capture Everything with the Compact LI5020
The Canon LI5020 CMOS Sensor offers 5m pixels. It’s square 3.2µm x 3.2µm pixel arrangement and 2/3” frame achieves ultra-high resolution, allowing you to capture everything you need in a compact design. Find out how you can make your machine vision project a success with the LI5020 from Canon.
An Industry Leading CMOS Sensor
The 5020 5-megapixel CMOS sensor is equipped with a global shutter and a sensor size of 8.8 x 7.0 mm. It offers enhanced NIR sensitivity of 55,000. It also provides lightning-fast frame rates of 120 fps and is available in three color options: RGB, Mono, and RGB-NIR.
Technical Specifications
| LI5020SAC | LI5020SAM | LI5020SAI | |
| Filter Type | RGB | Monochrome | RGB-MIR |
| Sensitivity [e/lx/sec] | 30,000 | 54,000 | 30,000 |
| Resolution | 5.33 MP | ||
| Pixel count | 2592 x 2056 | ||
| Pixel pitch | 3.4 μm | ||
| Sensor Size | 2/3 inch (8.8 x 7.0 mm) | ||
| Shutter Type | Global | ||
| Enhanced NIR sensitivity | Yes | ||
| Frame rate | 120 fps | ||
