TQMa53 Embedded Cortex®-A53 module

Based on i.MX53 unites industry and multimedia

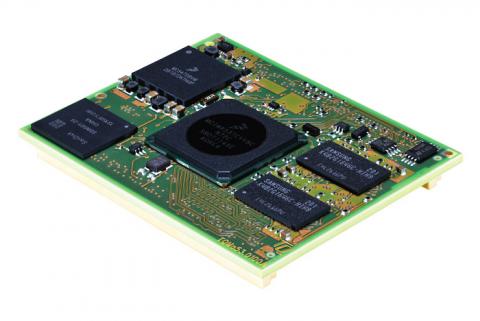

The TQMa53 is an embedded Cortex®-A53 module based on the i.MX53 processor, offering a unique fusion of industrial and multimedia capabilities. It features an Arm® Cortex®-A8 core with a clock rate of up to 1.2 GHz and low power consumption (typ. 3 W), making it suitable for a wide range of applications. This module is well-equipped with IEEE 1588 support, security functions, and e-MMC Flash storage for data reliability. With integrated graphic support for up to UXGA resolution, it's ideal for HMI, animated displays, and multitouch applications.

Features

  • Comprehensive CPU pin connectivity.
  • Support for IEEE 1588 for precise timing.
  • Versatile security functions.
  • High-resolution graphics capabilities.
  • Support for multiple communication interfaces.

Specifications

CPU
  • Cortex®-A8 Technology
  • MCIMX537 / MCIMX535
  • CPU JTAG interface
Memory
  • DDR3: DDR3-SDRAM: up to 1 GB
  • EEPROM: 0/64-kbit
  • eMMC: Up to 16 GB
Graphics
  • Analog VGA
  • Parallel 1x24 bit (RGB) UXGA
  • Dual LVDS UXGA
Communications Interfaces
  • Ethernet:
    • 1x Ethernet 10/100 Mbit (IEEE 1588)
    • 1x WEIM
  • SATA: 1x SATA
  • USB:
    • 2x USB 2.0 high-speed HOST interface
    • 2x USB 2.0 high-speed OTG interface
  • Serial Ports:
    • Up to 5x UART
    • 1x ESAI
    • SPDIF
  • CAN: 2x FlexCAN
Other Interfaces
  • SD Card: Up to 3x SDIO/MMC
  • I2C: Up to 2x I2C
  • SPI: up to 3x CSPI
  • I2S: Up to 3x SSI/I2S
  • MIPI: 1x 16 bit Camera I/F
General
  • Dimensions: 55 x 44 mm
  • Plug-in System: Board-to-board plug-in system 240 pins
  • Temperature range:
    • Standard temperature range: -25°C…+85°C
    • Extended temperature: -40°C…+85°C
  • Power supply: 5 V
  • Temperature sensor
  • Supervisor 5 V
OS
  • Linux
  • QNX
  • Android on request
  • Windows Embedded Compact 2013 on request



Ordering Information

TQMa53-AA
  • TQMa53, i.MX537 / 800 MHz, 4 GB e-MMC flash, 512 MB DDR3, 64 kbit EEPROM, -25°C …+85°C

Starter kit STKa53 set

  • The core of the STKa53 set is the TQMa53 with the i.MX53 CPU from Freescale. With the preconfigured starter kit you can start immediately with the development of your application in order to achieve a fast time-to-market. To develop your own hardware you can use the certified and qualified circuit components of the starter kit in your own designs. A large accessory kit enables the connection of commercial monitors. Different display solutions for a direct connection to LVDS / TTL are available upon request.
