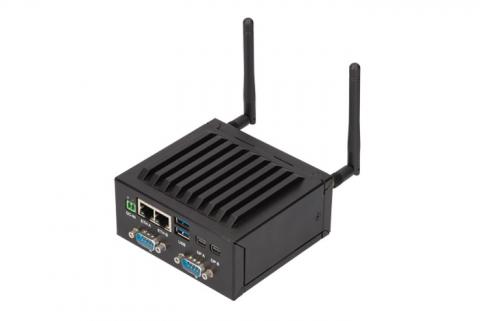

MBox-VH-E39 Embedded BoxPC

Intel Atom® E3900 (“Apollo Lake-I“)



The Embedded BoxPC MBox-VH-E39, powered by the Intel Atom® E3900 (Apollo Lake-I) processor series, offers FPGA engineers a compact and versatile solution for their embedded applications. With support for up to 8 GB of DDR3L memory and ultra-low power optimization, this system delivers efficiency without compromising performance.



Featuring high-speed I/O options, including 2x Gigabit Ethernet and 2x USB 3.0 ports, this BoxPC ensures rapid data transfer and connectivity. Its 2x Mini DisplayPort connectors enable the connection of two high-resolution monitors, enhancing visualization and multitasking capabilities.



For added security, TPM 1.2/2.0 support is available as an option, while preparedness for wireless connectivity expands networking possibilities. The system can withstand extended temperature ranges, making it suitable for challenging environments.



With a highly customizable sheet metal chassis, individual configurations are easily achievable, and it can be adapted for various use cases. The MBox-VH-E39's versatility extends from embedded server and gateway applications to entry-level PC systems, offering a robust, durable, and long-term availability solution.



Whether used as a desktop device or integrated into cabinets with DIN rail mounting, this BoxPC from Intel's trusted hardware partner provides FPGA engineers with a reliable platform for their embedded projects

Features

  • FPGA-Compatible Processor: Intel Atom® x5/x7 E3900 (Apollo Lake-I) series processors provide compatibility and performance suitable for FPGA engineering applications.

  • High-Speed I/O: The system offers 2x Gigabit Ethernet and 2x USB 3.0 ports for efficient data transfer and connectivity.

  • Dual Monitor Support: With 2x Mini DisplayPort connectors, the BoxPC enables dual high-resolution monitor connections for enhanced visualization and multitasking.

  • Security Options: Optional TPM 1.2/2.0 support enhances security features, safeguarding sensitive data and applications.

  • Customizable Chassis: The highly customizable sheet metal chassis allows for tailored configurations, meeting specific requirements of FPGA engineering projects

Specifications

CPU
  • Intel Atom® x5/x7 E3900 (Apollo Lake-I)
  • x7-E3950 4x 1.6/2.0 GHz, 12 W
  • x7-E3950 4x 1.6/2.0 GHz, 12 W
  • x5-E3940 4x 1.6/1.8 GHz, 9.5 W
  • x5-E3930 2x 1.3/1.8 GHz, 6.5 W
Memory
  • DDR3L: 2/ 4/ 8 GB, soldered down

  • eMMC: up 10 128 GB

Graphics
  • 2x Mini DisplayPort (1x DP++ with up to 4K UHD and 1x DP 1.1)
Communications Interfaces
  • Ethernet -  2x Gbit Ethernet (Intel® i210)
  • USB - 2x USB 3.0
  • Serial Port - 2x RS-232
Other Interfaces
  • PCIe - 1x Mini PCIe full siz
  • SATA - mSATA full-size (16 – 512 GB, others on request)
  • SD Card - 1x Micro SD socket
General
  • Dimensions - Integrated hardware kit: 100 x 100 x 23 mm / Chassis: 103 x 110 x 55 mm
  • Temperature range - Standard temperature: 0°C…+60°C
  • Power supply - 9 V - 30 V / Connector type: Phoenix MC1,5/2-G-3,5
OS
  • Windows 10 (Standard and Embedded/IoT)
  • Linux (e.g. Ubuntu)
  • Others on request
  • Custom specific software images can be pre-installed.

Ordering Information

DC Power Connector

  • 2-pin power connector for easy installation (Phoenix FMC1,5/2-ST-3,5), (already included in MBox-ADV
    delivery content)

Power Supply AC/DC (302195)

  • 30W AC/DC wall-mount switching adapter with interchangeable AC plugs (EU, US, AUS, UK).
    VI=90...264V, VO=18V, 1,67A, -20...40/60°C, 30W, 1,7m cable with ferrit core/open-ended

DIN rail mounting bracket

  • Can be mounted on bottom side of the chassis.
