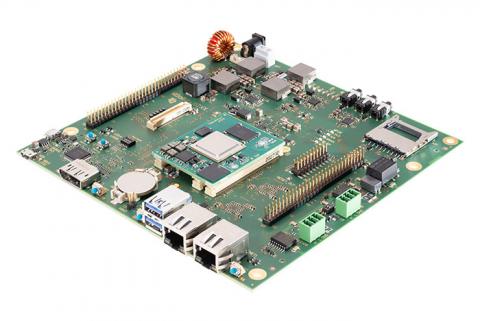

Starterkit STKa8Xx4

Arm® Cortex®-A35 based on i.MX8X

The Embedded Starterkit STKa8Xx4 is an evaluation kit designed for embedded computing engineers. It's based on the TQMa8Xx4 platform, featuring the Arm Cortex-A35 processor from NXP's i.MX8X series. This kit is well-suited for applications requiring high-quality graphics with 4K support. It comes with integrated security functions and a Cortex-M4 CPU for real-time and security applications. The kit boasts low power consumption, typically around 4 watts, making it energy-efficient. Additionally, it features a DSP for audio processing and offers 3x CAN-FD for versatile connectivity.

Features

  • Graphics with 4K Support: Ideal for high-quality graphics applications with 4K support.
  • Security Functions: Includes integrated security functions for data protection.
  • Integrated Cortex-M4 CPU: Features a Cortex-M4 CPU for real-time and security applications.
  • Low Power Consumption: Maintains low power consumption, typically around 4 watts.
  • DSP for Audio Processing: Equipped with a DSP for high-quality audio processing.
  • 3x CAN FD: Offers 3x CAN-FD interfaces for versatile connectivity.

Specifications

CPU
  • Cortex®-A35 Technology
  • i.MX8X Dual
  • i.MX8X Dual Plus
  • i.MX8X Quad Plus
Memory
  • LPDDR4 SDRAM: Up to 4 GB
  • Quad SPI NOR: Up to 256 MB
  • Up to 64 GB eMMC Flash
  • EEPROM: 0/64-kbit
Graphics
  • Dual LVDS Interface / 2x MIPI DSI
  • 1x MIPI CSI
Communications Interfaces
  • Up to 2x Ethernet 10/100/1000 Mbit
  • Up to 1x USB 3.0 OTG interface
  • Up to 2x USB 2.0 OTG interface
  • Up to 4x UART
  • Up to 3x CAN FD
Other Interfaces
  • 1x SDIO/MMC 1x PCIe
  • Up to 8x I²C
  • Up to 4x SPI
  • Up to 2 Q-SPI
  • Up to 2x SPDIF
  • Up to 4x ESAI
  • Up to 32 GPIO
General
  • Power supply 3.3 V
  • Ambient conditions
    • Standard temperature range: -25°C…+85°C
    • Extended temperature range: -40°C…+85°C
    • Dimensions 55 mm x 44 mm
  • Plug-in system Board-to-board plug-in system 280 pins
OS
  • Linux
  • PikeOS
  • QNX on request
  • Android on request

Ordering Information

TQMa8XD4-AA
  • i.MX8X Dual/typ 1.0 GHz/max 1.2 GHz, 8 GB eMMC Flash, 1 GB LPDDR4, 64 kB EEPROM, RTC, -25°C…+85°C
TQMa8XDP4-AA
  • i.MX8X Dual Plus/typ 1.0 GHz/max 1.2 GHz, 8 GB eMMC Flash, 2 GB LPDDR4, 64 kB EEPROM, RTC, -25°C…+85°
TQMa8XQP4-AA
  • i.MX8X Quad Plus/typ 1.0 GHz/max 1.2 GHz, 8 GB eMMC Flash, 2 GB LPDDR4, 64 kB EEPROM, RTC, -25°C…+85°
STKa8Xx4-AA
  • STKa8Xx4 (Eval Kit) with TQMa8Xx4-AA, i.MX8X/typ 1.0 GHz/max 1.2 GHz, 2 (1) GB LPDDR4, 8 GB eMMC Flash, 64 kB EEPROM, 1x RS232, 2x CAN FD separated, 1x USB 3.0 OTG, 4x USB 2.0 HOST, 2x ETH 10/100/1000, 1x HDMI/DP, 2x LVDS/DSI, 1x PCIe, RTC, Temperature sensor, Reset-Button, SD interface, Power Supply, 4 GB SD card, Cables
Starterkit STK8Xx4 set
  • The core of the STKa8Xx set is the TQMa8Xx4 module with a i.MX8X Cortex®-A35 CPU. The components contained in the starter kit constitute a modular system enabling you to develop your own product ideas. Development of graphic interfaces can be started immediately using a TQ display kit which is adjusted for a starter kit. To develop your own hardware you can use the certified and qualified circuit components of the starter kit in your own designs.
