IEI tKINO-ULT6
IEI's Tiger Lake 11th Gen Intel® Mini-ITX SBC offers the highest performance IO package with modest footprint & power
Big pipes include USB 4.0, 2.5 Gbe, PCIe Gen 4 & more!
Model tKINO-ULT6
IEI’s latest offering, the tKINO-ULT6, is the cutting-edge Mini-ITX SBC for those needing high-end communications, video, and blazing performance in general. The popular Core processors (i3, i5 and i7) are upgraded with Intel’s latest 10nm process, and a cool running Celeron processor option is also available for an even lower power envelope.
Key performance features come from the latest memory and IO offerings:
- USB 4 (Thunderbolt 3 compatible) 40 Gb/s
- 4x USB 3.2 Gen 2
- 2x 2.5 Gb Ethernet
- DDR4-3200 SODIMM – up to 64 GB
- Latest Gen 12 Graphics engine – up to 4 displays (HDMI, DP, eDP/LVDS, USB4)
- PCIe slot Gen3/Gen4 and M.2 slots
And those are just the highlights.
The tKINO-ULT6 has four independent UHD video ports available, impressive video applications including digital signage are readily available. The performance of this platform offers much in the AI/vision/edge/automation computing space for industrial, smart retail applications and surveillance.
The USB 4.0 port is capable of 40 Gb/s, is compatible with Thunderbolt 3, and can connect a variety of peripherals, high end equipment and video displays.

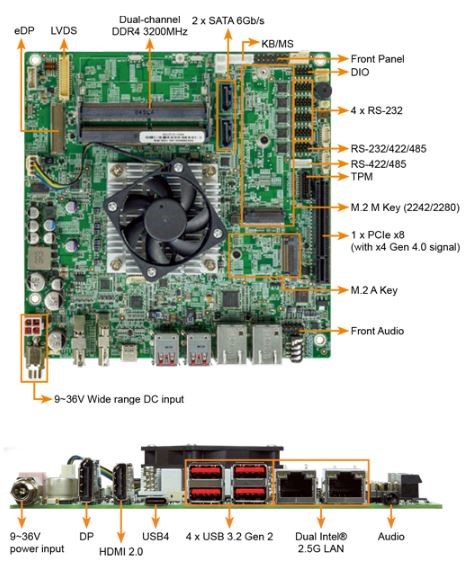

Features and connectivity:
| Spec Item | Description |
|---|---|
| Form Factor | Mini-ITX Motherboard |
| CPU | 11th Gen. Intel® mobile Tiger Lake-UP3 on-board processor Intel® Core™ i7-1185G7E (up to 4.4GHz, quad-core, 12M Cache, TDP=28/15/12W) Intel® Core™ i5-1145G7E (up to 4.1GHz, quad-core, 8M Cache, TDP=28/15/12W) Intel® Core™ i3-1115G4E (up to 3.9GHz, dual-core, 6M Cache, TDP=28/15/12W) Intel® Celeron® 6305E (up to 1.8GHz, dual-core, 4M Cache, TDP=15W) |
| Memory | 2 x SO-DIMM DDR4 3200MHz, system maximun up to 64GB |
| Memory Max. | Up to 64GB |
| Cooling method / System Fan | 1 x CPU Cooler |
| Dimensions (LxWxH) (mm) | 170mm x 170mm |
| Net Weight | GW:900g / NW:400g |
| Storage | 1 x M.2(NGFF) |
| 2 x SATA | |
| Display Output | 1 x Display Port |
| 1 x eDP | |
| 1 x HDMI | |
| 1 x LVDS | |
| Ethernet | 2 x LAN: 2.5GbE LAN (Intel® I225-V) |
| Audio | 1 x Front Audio(2x5-pin) |
| HD Audio: Realtek ALC888S HD audio codec | |
| 1 x Line out | |
| 1 x Mic | |
| I/O Interface | 1 x DIO: 8-bit digital I/O (2x5 pin) |
| 5 x External USB 3.2 Gen2x2: 4 x USB 3.2 Gen2, 1 x USB 4 | |
| 4 x Internal RS-232(2x5 pin, P=2.0) | |
| 1 x Internal RS-232/422/485(2x5 pin, P=2.0) (RS-485 support AFC) | |
| 1 x Internal RS-422/485(2x5 pin, P=2.0) (RS-485 support AFC) | |
| 4 x Internal USB 2.0(2x4 pin, P=2.0) | |
| 1 x PS/2(1x6 pin) | |
| Expansion | 2 x M.2(NGFF): 1 x M.2 2230 A key (PCIe x1/USB 2.0), 1 x M.2 2242/2280 M key (PCIe x2/SATA) |
| 1 x PCIe x8: Open-ended Slot(with x4 Gen4.0 signal) | |
| Other Features | |
| TPM | 1 x TPM 2.0 connector (2x10 pin) (SPI interface) |
| Input | 9~36V DC input 1 x Internal power connector (2x2 pin) 1 x External DC power Jack (Ø5.5mm) |
| Power Consumption | 12V@6.48A (Intel® Core™ i7-1185G7E up to 4.4GHz CPU with 16GB (8GB x 2) DDR4-3200 memory running in 2.8GHz) |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~ 95%, non-condensing |
| Safety & EMC | CE/FCC compliant |
Ordering Info:
| Item No. | Description |
|---|---|
| tKINO-ULT6-i7-R10 | Thin Mini-ITX SBC supports Intel® 11th Gen Tigerlake-UP3 Mobile Core™ i7-1185G7E Proccessor, 9~36V DC input, Quadruple Independent Display, HDMI, DP, eDP, SATA 6Gb/s, Dual Intel® 2.5GbE, USB 3.2 Gen 2, M.2, HD audio and RoHS |
| tKINO-ULT6-i5-R10 | Thin Mini-ITX SBC supports Intel® 11th Gen Tigerlake-UP3 Mobile Core™ i5-1145G7E Proccessor, 9~36V DC input, Quadruple Independent Display, HDMI, DP, eDP, SATA 6Gb/s, Dual Intel® 2.5GbE, USB 3.2 Gen 2, M.2, HD audio and RoHS |
| tKINO-ULT6-i3-R10 | Thin Mini-ITX SBC supports Intel® 11th Gen Tigerlake-UP3 Mobile Core™ i3-1115G4E Proccessor, 9~36V DC input, Quadruple Independent Display, HDMI, DP, eDP, SATA 6Gb/s, Dual Intel® 2.5GbE, USB 3.2 Gen 2, M.2, HD audio and RoHS |
| tKINO-ULT6-C-R10 | Thin Mini-ITX SBC supports Intel® 11th Gen Tigerlake-UP3 Mobile Celeron® 6305E Proccessor, 9~36V DC input, Quadruple Independent Display, HDMI, DP, eDP, SATA 6Gb/s, Dual Intel® 2.5GbE, USB 3.2 Gen 2, M.2, HD audio and RoHS |
Package Contents:
1 x tKINO-ULT6 SBC with CPU cooler
1 x SATA cable
1 x I/O shielding
1 x QIG
