Machine Vision Development Kit

P/NDescriptionImages

EasyMVC

$ ASK



Contact

Macnica’s modular Machine Vision Camera Development Kit, EasyMVC, enables streamlined evaluation and development of machine vision cameras  based on Sony image sensors and Intel FPGAs, with support for multiple machine vision network interfaces including USB3 Vision and HDMI 2.0.



More info

SoC FPGA Base Boards

P/NDescriptionImages

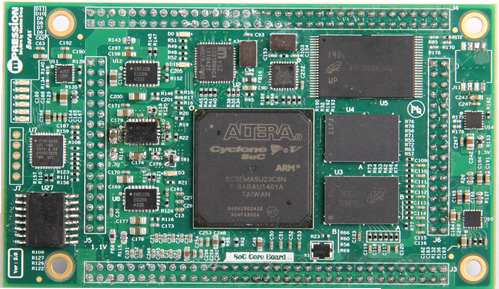

Mpression Borax - System On Module with Intel Cyclone V SoC FPGA

There are multiple configurations of this product. Please refer to the ordering info page:

 Ordering Info

Borax SOM is a system on module card integrating an Intel® Cyclone® V SoC and necessary memory, power and external interfaces on a very small size card.

The modules are available in different configurations to meet your production requirements.

A base board that interfaces to the SOM for development is also available.



 More Info

Mpression Sodia - Cyclone V ST SoC FPGA Evaluation Board

 $980.00

The Mpression Sodia board is a development platform for embedded system designs with Intel Cyclone V ST SoC FPGAs featuring 6.144 Gbps transceivers. The Sodia FPGA board is an upward-compatible superset of the Mpression Helio Kit allowing Helio Kit users to easily upgrade their development environment with more functionality.



 More Info

FPGA Base Boards

P/NDescriptionImages

Mpression Nitro - Cyclone V GX I/O Expansion Base Board

$2150.00



The Mpression Nitro board is an evaluation board developed by Macnica for the Intel Cyclone V GX FPGA. The Mpression Nitro board has components such as an Intel Cyclone V GX FPGA, DDR3 memories and clock ICs, and the three HSMC connectors. Users can be quickly prototyping FPGA-based multi-input/output applications in combination with various I/O daughter cards.



  More Info



Mpression Beryll - Cyclone V GX FPGA Base Board

$348.00



The Mpression Beryll board is an evaluation board developed by Macnica for the Intel Cyclone V GX FPGA.  Users can evaluate the various features of the Cyclone V GX FPGA before developing their own embedded systems. Additionally, there are a variety of interfaces and expansion mezzanine connectors on the Beryll board.



More Info



Interface Daughter Cards

P/NDescriptionImages

Mpression USB 3.0 HSMC Daughter Card



$650

The Mpression USB 3.0 Interface Board with a Cypress USB3.0 controller "EZ-USB ®FX3™" and an Intel's High-Speed Mezzanine Connector (HSMC), allows this board to work with various Altera development kits via HSMC. By using this USB 3.0 Interface Board, customers can enable USB 3.0 transmission in their system.



  More Info

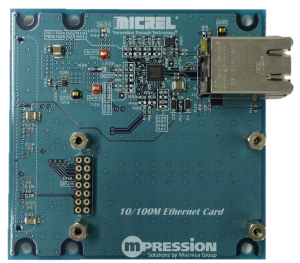

Mpression 10/100M Ethernet Card

ASK $



Contact

The 10/100M Ethernet Card is a daughter card to use with base boards with Intel FPGAs to attain 10/100MbitEthernet. This daughter card uses Micrel's Ethernet PHY, LDO, clock device and a HSMC connector. By connecting with an Altera FPGA based base board, FPGA designers can quickly start designs and evaluations using 10/100Mbit Ethernet interface.



  More Info

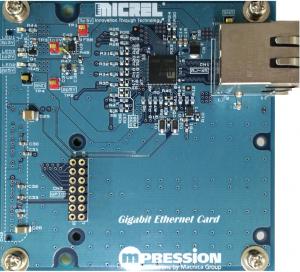

Mpression Gigabit Ethernet Card

ASK $



Contact

The Gigabit Ethernet Card is a daughter card to use with base boards with Intel FPGAs to attain Gigabit Ethernet. This daughter card uses Micrel's Ethernet PHY, LDO, clock device and a HSMC connector. By connecting with an Intel FPGA based base board, FPGA designers can quickly start designs and evaluations using Gigabit Ethernet interface.



  More Info

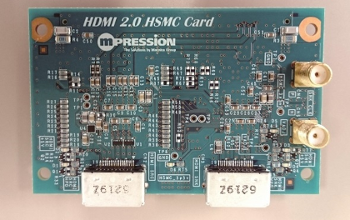

Mpression HDMI 2.0 FMC/HSMC Daughter Card

ASK $



Contact

The HDMI 2.0 FMC Card is an FPGA Mezzanine Connector (FMC) daughter card that complies with FMC (Intel LPC+) standard. It provides HDMI 2.0 interfaces to FPGA evaluation boards with FMC such as Intel Arria®10 GX FPGA Development Kit. This card has been verified connectivity with Intel Arria®10 GX FPGA Development Kit.

The HDMI 2.0 HSMC Card has the same functionality but with HSMC connector to connect with development kits with Intel's low cost FPGAs such as Cyclone or Max series.



  More Info

Mpression 12G-SDI FMC Daughter Card

ASK $

Contact

The 12G-SDI FMC Card is a daughter card to provide 4 channels of multi-rate SDI interface (SD-SDI/HD-SDI/3G-SDI/6G-SDI/12G-SDI). These expansions are possible by combining Intel's Arria® 10 GX FPGA Development Kit and other FPGA boards compliant with the FPGA Mezzanine Card (FMC) Standard.

  More Info



Mpression 3G-SDI FMC Daughter Card

ASK $



Contact

The 3G-SDI FMA Card is an FMC daughter card supporting Intel LPC+ FMC standard.



  More Info



Mpression SFP+ x4 FMC Daughter Card

ASK $



Contact

The SFP+ x4 FMC Card is an FPGA Mezzanine Connector (FMC) daughter card with four cages of SFP+ interface.

  More Info



Mpression Vx1 FMC Daughter Card

ASK $



Contact

Vx1 FMC Card is an FMC daughter card to support V-by-One HS standard with FPGA base boards with FMC connectors. Mpression offers V-by-One HS IP (both Tx IP and Rx IP). The V-by-One®HS is a high speed interface standard developed and specified by THine Electronics, Inc., initially for flat panel display markets and now used for various data transfer functions in many applications across markets.



  More Info



Mpression Vx1 HS HSMC Daughter Card

ASK $



Contact

V-by-One® HS is a leading-edge high-speed interface technology for flat panel display market developed by THine Electronics, Inc.
This daughter card can be used to verify V-by-One® HS Interface by connecting to HSMC connector of Intel® FPGA development board with V-by-One® HS Tx/Rx IP implemented.
In addition to V-by-One® HS Tx/Rx IP, you can also verify transceivers built in FPGA.
For your V-by-One® HS verification, in addition to preparing the Intel FPGA Development Board, you need to obtain a license (for evaluation or production) of Macnica V-by-One® HS Tx/Rx IP in advance.
The development board verified by Macnica for connection with this card is Intel® Cyclone IV GX FPGA Development Kit.



  More Info



Mpression MMC+ Card

ASK $



Contact

MMC + Card is the eMMC evaluatuion card of the Multimedia plus card type. This card is mounted a Micron 4GByte eMMC (embedded Multi Media Card). This card is able to evaluate the various FPGA and SoC evaluation board with MMC or SD interface slot.



  More Info

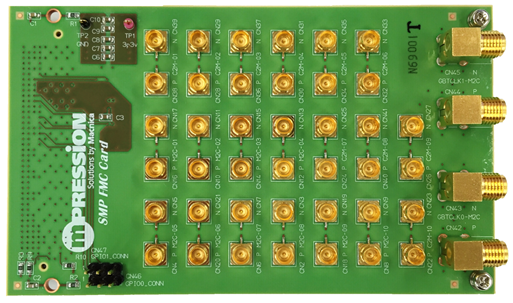

Mpression SMP FMC Card

ASK $

Contact

FMC daughter card with SMP connector for evaluation of High Speed Serial Transceivers in FPGA. This card is an FPGA Mezzanine Connector (FMC) daughter card that complies with HPC standard. By inserting this card into an FPGA evaluation board, you can evaluate high-speed serial transceivers of the FPGA by utilizing a variety of FPGA functions.

The evaluation board which has been verified to connect with this card so far is the Intel® Arria® 10 GX FPGA development kit.

Note: Intel® Arria® 10 GX FPGA Development Kit can be purchased separately.



  More Info

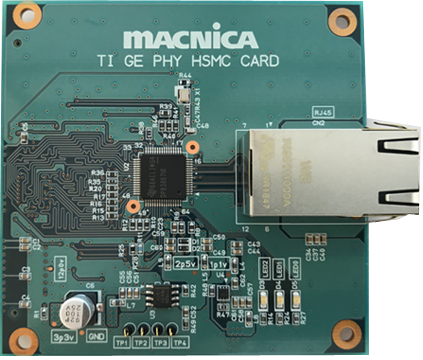

Mpression TI GE PHY HSMC Card

ASK $

Contact

HSMC daughter card for Gigabit Ethernet evaluation equipped with Texas Instruments 1000Base-T Ethernet PHY. This card is a function expansion daughter card compliant with the High Speed Mezzanine Card standard. This card is equipped with a 1000Base-T Ethernet PHY manufactured by Texas Instruments. By inserting it into the evaluation board, you can evaluate the Gigabit Ethernet using various FPGA functions. The evaluation board that has been verified for connection with this card is the Intel Cyclone® V GT FPGA Development Kit.
P/NDescriptionImages

Mpression USB 3.0 HSMC Daughter Card



$650

The Mpression USB 3.0 Interface Board with a Cypress USB3.0 controller "EZ-USB ®FX3™" and an Intel's High-Speed Mezzanine Connector (HSMC), allows this board to work with various Altera development kits via HSMC. By using this USB 3.0 Interface Board, customers can enable USB 3.0 transmission in their system.



  More Info



Mpression 10/100M Ethernet Card

ASK $



Contact

The 10/100M Ethernet Card is a daughter card to use with base boards with Intel FPGAs to attain 10/100MbitEthernet. This daughter card uses Micrel's Ethernet PHY, LDO, clock device and a HSMC connector. By connecting with an Altera FPGA based base board, FPGA designers can quickly start designs and evaluations using 10/100Mbit Ethernet interface.



  More Info

Mpression Gigabit Ethernet Card

ASK $



Contact

The Gigabit Ethernet Card is a daughter card to use with base boards with Intel FPGAs to attain Gigabit Ethernet. This daughter card uses Micrel's Ethernet PHY, LDO, clock device and a HSMC connector. By connecting with an Intel FPGA based base board, FPGA designers can quickly start designs and evaluations using Gigabit Ethernet interface.



  More Info

Mpression HDMI 2.0 FMC/HSMC Daughter Card

ASK $



Contact

The HDMI 2.0 FMC Card is an FPGA Mezzanine Connector (FMC) daughter card that complies with FMC (Intel LPC+) standard. It provides HDMI 2.0 interfaces to FPGA evaluation boards with FMC such as Intel Arria®10 GX FPGA Development Kit. This card has been verified connectivity with Intel Arria®10 GX FPGA Development Kit.

The HDMI 2.0 HSMC Card has the same functionality but with HSMC connector to connect with development kits with Intel's low cost FPGAs such as Cyclone or Max series.



  More Info

Mpression 12G-SDI FMC Daughter Card

ASK $

Contact

The 12G-SDI FMC Card is a daughter card to provide 4 channels of multi-rate SDI interface (SD-SDI/HD-SDI/3G-SDI/6G-SDI/12G-SDI). These expansions are possible by combining Intel's Arria® 10 GX FPGA Development Kit and other FPGA boards compliant with the FPGA Mezzanine Card (FMC) Standard.

  More Info



Mpression 3G-SDI FMC Daughter Card

ASK $



Contact

The 3G-SDI FMA Card is an FMC daughter card supporting Intel LPC+ FMC standard.



  More Info



Mpression SFP+ x4 FMC Daughter Card

ASK $



Contact

The SFP+ x4 FMC Card is an FPGA Mezzanine Connector (FMC) daughter card with four cages of SFP+ interface.

  More Info



Mpression Vx1 FMC Daughter Card

ASK $



Contact

Vx1 FMC Card is an FMC daughter card to support V-by-One HS standard with FPGA base boards with FMC connectors. Mpression offers V-by-One HS IP (both Tx IP and Rx IP). The V-by-One®HS is a high speed interface standard developed and specified by THine Electronics, Inc., initially for flat panel display markets and now used for various data transfer functions in many applications across markets.



  More Info



Mpression Vx1 HS HSMC Daughter Card

ASK $



Contact

V-by-One® HS is a leading-edge high-speed interface technology for flat panel display market developed by THine Electronics, Inc.
This daughter card can be used to verify V-by-One® HS Interface by connecting to HSMC connector of Intel® FPGA development board with V-by-One® HS Tx/Rx IP implemented.
In addition to V-by-One® HS Tx/Rx IP, you can also verify transceivers built in FPGA.
For your V-by-One® HS verification, in addition to preparing the Intel FPGA Development Board, you need to obtain a license (for evaluation or production) of Macnica V-by-One® HS Tx/Rx IP in advance.
The development board verified by Macnica for connection with this card is Intel® Cyclone IV GX FPGA Development Kit.



  More Info



Mpression MMC+ Card

ASK $



Contact

MMC + Card is the eMMC evaluatuion card of the Multimedia plus card type. This card is mounted a Micron 4GByte eMMC (embedded Multi Media Card). This card is able to evaluate the various FPGA and SoC evaluation board with MMC or SD interface slot.



  More Info





Mpression SMP FMC Card

ASK $

Contact

FMC daughter card with SMP connector for evaluation of High Speed Serial Transceivers in FPGA. This card is an FPGA Mezzanine Connector (FMC) daughter card that complies with HPC standard. By inserting this card into an FPGA evaluation board, you can evaluate high-speed serial transceivers of the FPGA by utilizing a variety of FPGA functions.

The evaluation board which has been verified to connect with this card so far is the Intel® Arria® 10 GX FPGA development kit.

Note: Intel® Arria® 10 GX FPGA Development Kit can be purchased separately.



  More Info





Mpression TI GE PHY HSMC Card

ASK $

Contact

HSMC daughter card for Gigabit Ethernet evaluation equipped with Texas Instruments 1000Base-T Ethernet PHY. This card is a function expansion daughter card compliant with the High Speed Mezzanine Card standard. This card is equipped with a 1000Base-T Ethernet PHY manufactured by Texas Instruments. By inserting it into the evaluation board, you can evaluate the Gigabit Ethernet using various FPGA functions. The evaluation board that has been verified for connection with this card is the Intel Cyclone® V GT FPGA Development Kit.
