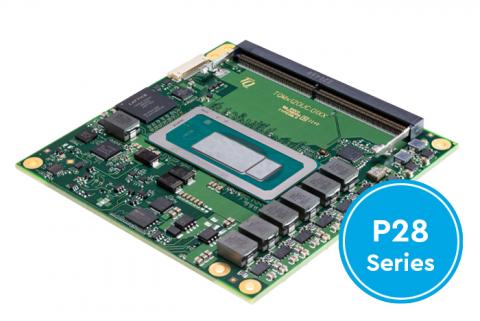

TQMx130PC COM Express® Compact Type 6 Module

13th Generation Intel® Core™ Processors



The TQMx130PC, a COM Express® Compact Type 6 Module powered by 13th Generation Intel® Core™ Processors (codenamed Raptor Lake-P / P28 series), offers FPGA engineers a potent computing solution. This module, equipped with Intel's Performance-Hybrid-Technology, blends Performance-Cores and Efficient-Cores to deliver exceptional multi-threaded performance, ideal for FPGA-intensive applications.



Operating with a thermal design power range of 20/28/35 W, the P28 Performance Series provides FPGA engineers with up to 14 CPU Cores (6P+8E) and a robust GPU boasting 96 Execution Units. This combination caters to the demands of high-performance, fanless systems, a significant advantage for FPGA applications requiring substantial computing power.



Memory flexibility is another notable feature, supporting DDR5-5200 SO-DIMM configurations of up to 64 GB. This adaptability is vital for FPGA engineers, ensuring sufficient memory resources for data-intensive FPGA tasks.



The module incorporates AI-Boost with VNNI + DP4a instruction sets, enabling FPGA engineers to optimize inferencing and deep learning tasks. Furthermore, it offers extended graphics support, accommodating four simultaneous 4K high-resolution display outputs or 2x 8K support, essential for visualization and data analysis in FPGA applications.



In terms of connectivity, the module includes 2.5 Gigabit Ethernet, ultra-high-speed PCIe, USB-C, and MIPI-CSI x4 support. Designed for real-time support and operation in harsh conditions, it includes an extended temperature option down to -40°C. Additionally, it's pin-to-pin compatible with its predecessor, the TQMx120PC, simplifying the upgrade process for FPGA engineers seeking enhanced performance.



Overall, the TQMx130PC is a robust and versatile computing solution tailored to meet the demanding requirements of FPGA engineers across various applications.

Features

  • Performance Hybrid Technology: superior multi-threaded performance for demanding applications.

  • P28 Performance Series: 4 CPU Cores (6P+8E) with potent GPU with 96 Execution Unit

  • Flexible Memory Configuration: DDR5-5200 SO-DIMM memory configurations of up to 64 GB

  • AI-Boost and DP4a:  AI-Boost with VNNI + DP4a instruction sets, enabling optimized inferencing and deep learning tasks

  • Extended Graphics Support: four simultaneous 4K high-resolution display outputs or 2x 8K support

Specifications

CPU
  • Intel Core i7-1370PE (14-Core) 6P+8E / 96 EU / 24 MB, up to 4.8 GHz (Embedded Use Conditions)
  • Intel Core i5-1350PE (12-Core) 4P+8E / 80 EU / 12 MB, up to 4.6 GHz (Embedded Use Conditions)
  • Intel Core i5-1340PE (12-Core) 4P+8E / 80 EU / 12 MB, up to 4.5 GHz (Embedded Use Conditions)
  • Intel Core i3-1320PE (8-Core) 4P+4E / 48 EU / 12 MB, up to 4.5 GHz (Embedded Use Conditions)
  • Intel Core i7-1375PRE (14-Core) 6P+8E / 96 EU / 24 MB, up to 4.8 GHz (for FUSA/FSDEP)
  • Intel Core i7-1370PRE (14-Core) 6P+8E / 96 EU / 24 MB, up to 4.8 GHz (Industrial Use Conditions, Extended Temp.)
  • Intel Core i5-1350PRE (12-Core) 4P+8E / 80 EU / 12 MB, up to 4.6 GHz (Industrial Use Conditions, Extended Temp.)
  • Intel Core i3-1320PRE (8-Core) 4P+4E / 48 EU / 12 MB, up to 4.5 GHz (Industrial Use Conditions, Extended Temp.)
Memory
  • DDR5-5200 - 64 GB (2 SO-DIMMs)
  • EEPROM - 32kbit
Graphics
  • Up to 4 independent 4K display outputs
  • 3x DP/DP++ 1.4a with up to 8K / HDMI
  • 1x eDP 1.4b or dual channel LVDS interface
Communications Interfaces
  • Ethernet - 2.5 Gigabit Ethernet (Intel i226)
  • USB - 4x USB 3.2 Gen2 (up to 10 Gb/s) with USB 3.0 compatibility
  • SATA - 2x  SATA 3.0 (up to 6 Gb/s)
Other Interfaces
  • PCIe - CIe Gen4 (up to 16 Gb/s per Lane) (x4 + x4)
  • LPC - LPC/eSPI
  • I2C
  • SMBus
  • SPI - SPI (for external UEFI BIOS flash)
  • UART - 2x UART (Rx/Tx) (4-wire optional)
  • GPIO - 8x GPIO through TQ-flexiCFG
  • MIPI - (4 lanes) on extra 22-pin connector (configuration option)
General
  • Dimensions - 95mm x 95mm
  • Plug-in System - COM Express Compact
  • Temperature range - Standard temperature: 0°C…+60°C (HE versions)
  • Power supply - 8.5 ... 20 V, 5 V Standby (optional), 3 V Battery for RTC
  • Power consumption - Power: typ. 28 W / max. TBD
OS
  • Windows 10 / Windows 10 IoT Enterprise
  • Windows 11 (restricted support)
  • Linux
