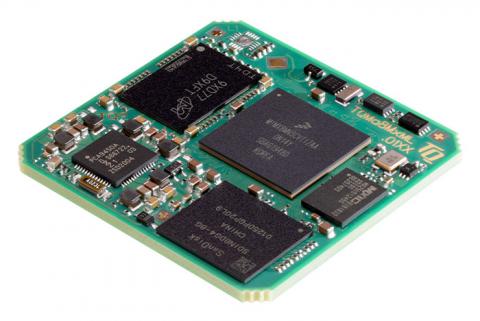

TQMa8MxML Embedded Cortex®-A53 module

Based on i.MX8M Mini with enhanced Audio properties.

The TQMa8MxML Embedded Module is built around the i.MX8M Mini processor, featuring an Arm Cortex-A53 core, making it an ideal choice for applications with demanding audio and graphical needs. This module offers advanced audio properties and integrates a Cortex M4 for real-time and security functionalities. With support for high-speed communication, it features 1x Gbit Ethernet, 1x PCle, and 2x USB 2.0 interfaces. Additionally, the integrated graphics controller with GPU and hardware acceleration facilitates complex graphics, while the module is available in multiple CPU variants with varying performance levels.

Features

  • Advanced audio properties
  • Integration of Cortex M4
  • High-speed communication with Gbit Ethernet
  • Multiple CPU variants for varying performance needs
  • Integrated graphics controller with GPU and hardware acceleration

Specifications

CPU
  • CPU/Processor:
    • Cortex®-A53 - Up to 1,8GHz
  • CPU variant:
    • i.MX8M Mini Solo
    • i.MX8M Mini Solo Lite
    • i.MX8M Mini Dual
    • i.MX8M Mini Dual Lite
    • i.MX8M Mini Quad
    • i.MX8M Mini Quad Lite
Memory
  • LPDDR4: Up to 4 GB
  • EEPROM: 0/64-kbit
  • eMMC: Up to 64 GB
  • Quad SPI NOR: Up to 256 MB
Graphics
  • Graphics: LCD Interface: 1x MIPI DSI (4 Lanes)
  • Camera: 1x MIPI CSI2 (4 Lanes)
Communications Interfaces
  • USB:
    • Up to 1x USB 2.0 HOST interface
    • Up to 1x USB 2.0 OTG interface
  • Serial Ports: Up to 4x UART
  • Ethernet: 1x Ethernet 10/100/1000 Mbit
Other Interfaces
  • PCIe: Up to 1x PCIe 2.0
  • I2C: Up to 4x I2C
  • I2S: Up to 20x I²S
  • SPI:
    • Up to 3x SPI
    • Up to 1x QSPI
  • Audio:
    • Up to 1x SPDIF
    • Up to 8x PDM Mic.
  • SD Card: Up to 3x SDIO / eMMC
General
  • Temperature sensor
  • Temperature range:
    • Standard temperature range: -25°C…+85°C
    • Extended temperature: -40°C…+85°C
  • Power supply: 5 V
  • Plug-in System: LGA (Land Grid Array) 280 pins
  • Dimensions: 38 x 38 mm
OS
  • Linux
  • Android on request

Ordering Information

TQMa8MSML-AA
  • TQMa8MSML-AA, i.MX8M Mini Single Cortex®-A53/1.6 GHz, 8 GB eMMC Flash, 2 GB LPDDR4, 64 kB EEPROM, RTC, -25°C...+85°C

TQMa8MDML-AA

  • TQMa8MDML-AA, i.MX8M Mini Dual Cortex®-A53/1.6 GHz, 8 GB eMMC Flash, 2 GB LPDDR4, 64 kB EEPROM, RTC, -25°C...+85°C
TQMa8MQML-AA
  • TQMa8MQML-AA, i.MX8M Mini Quad Cortex®-A53/1.6 GHz, 8 GB eMMC Flash, 2 GB LPDDR4, 64 kB EEPROM, RTC, -25°C...+85°C  Other configurations on request
STKa8MxML-AA
  • STKa8MxML (Eval Kit) with TQMa8MxML-AA, i.MX8M Mini Quad Cortex®-A53/1.6 GHz, 2 GB LPDDR4, 8 GB eMMC Flash, 64 kB EEPROM, RTC, 2x USB 2.0 HOST, 1x USB 2.0 OTG, 1x ETH 10/100/1000, 1x eDP, 1x LVDS, 1x MIPI CSI, 1x Mini PCIe + SIM Card, Audio, Temperature sensor, Reset-Button, SD Card interface, Power Supply, 4 GB SD card, Cables
