MI805

Efficient and Versatile Embedded Computing Solution Featuring Intel® Celeron® Processors J1900

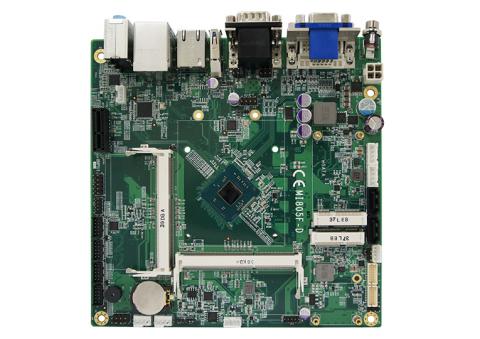

The MI805 Mini ITX Motherboard integrates an Intel® Celeron® J1900 quad-core processor, providing a clock speed of 2.0GHz. With support for up to 8GB of DDR3L SO-DIMM memory, this motherboard offers versatility and reliability for various embedded computing applications. Its wide-range power input capability, ranging from 9V to 30V, makes it particularly suitable for in-vehicle use. Equipped with Intel® Gen7 graphics engine, it ensures smooth video performance across triple display functionality. Compliance with EuP/ErP standards is ensured, accompanied by iSMART software for power management and environmental efficiency enhancements.

Features

  • Onboard Intel® Celeron® J1900 Quad-Core Processor
  • Support for up to 8GB DDR3L SO-DIMM Memory
  • Wide-Range Power Input (9V to 30V)
  • Intel® Gen7 Graphics Engine for Triple Display Functionality
  • iSMART Software for Power Management and Environmental Efficiency

Specifications

CPU SocketFCBGA1170
CPUIntel® Celeron® J1900 SoC (2.0GHz, 2MB cache)
PCHN/A
Memory2x DDR3L-1333 SO-DIMM, Max. 8GB (Non-ECC)
BIOSAMI
Watchdog Timer256 levels
H/W MonitorYes
Storage Device InterfacemSATA
Expansion Slots1x PCI-E (x1)
Mini Type Slots1x Mini PCI-E
Graphics ControllerIntel® Celeron® J1900 integrated Gen7 graphics
Video OutputSupports DVI-D, CRT 24-bit dual-channel LVDS
EthernetIntel® I211AT or I210AT Gigabit LAN
I/O ChipNuvoton NCT6106D
Serial Port1x RS232/422/485, 5x RS232
USB 2.02x USB 2.0 on board
2x USB 2.0 via pin header
USB 3.X1x USB 3.0 on board
Serial ATA2x SATA III
AudioIntel® Celeron® J1900 built-in audio + Realtek ALC269 codec
TPMN/A
Others12V~24V DC-In, iSMART, Digital I/O (4-in/4-out)
Dimensions (L X W)170mm x 170mm (6.7" x 6.7")
Power ConsumptionIntel® Celeron® J1900 2GHz w/ 8GB DDR3L-1600
+12V: 1.28A
Operating Temperature0°C~60°C (32°F~140°F)
Storage Temperature-20°C~80°C (-4°F~176°F)
Relative Humidity90% (non-condensing @60°C)

Ordering Information

MI805F-D

  • Intel® Celeron® J1900 2GHz SoC Mini-ITX motherboard w/DVI-D, VGA & LVDS, 2x PCI-E Gigabit LAN, iSMART, with heatsink
