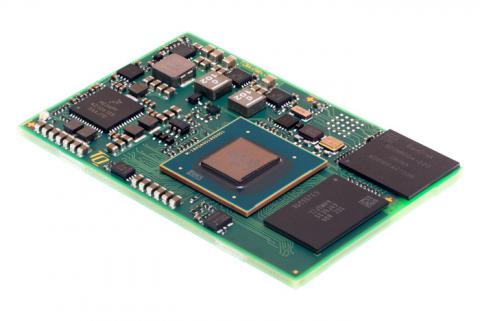

TQMa8Mx Embedded Cortex®-A53 module

Based on i.MX8M with extended audio and video functions.

The TQMa8Mx Embedded Module offers a versatile solution for embedded computing engineers. Based on the i.MX8M processor, it features Cortex-A53 cores, enhanced audio and video functions, and support for 4K graphics with VP9/4K HDR10. This module is equipped with a powerful 1x Cortex-M4 CPU for real-time and security tasks, and it's designed for low power consumption. High-speed communication is facilitated through 1x Gbit Ethernet, 2x PCIe, and 2x USB 3.0 interfaces, making it suitable for a wide range of applications.

Features

  • Cortex-A53 processor with enhanced audio and video functions
  • 4K graphics support with VP9/4K HDR10
  • Integrated Cortex-M4 CPU for real-time and security
  • Low power consumption
  • Multiple high-speed communication interfaces

Specifications

CPU
  • CPU/Processor:
    • Cortex®-A53 - Up to 1,5GHz
  • CPU variant:
    • i.MX8M Dual
    • i.MX8M Quad Lite
    • i.MX8M Quad
Memory
  • eMMC Flash: Up to 64 GB
  • EEPROM: 0/64-kbit
  • Quad SPI NOR: Up to 256 MB
  • LPDDR4-SDRAM: Up to 4 GB
Graphics
  • 1x HDMI
  • DSI Display (MIPI DSI 4 lane)
Communications Interfaces
  • Ethernet: 1x Ethernet 10/100/1000 Mbit
  • Serial Ports: Up to 4x UART
  • USB:
  • Up to 1x USB 3.0 OTG interface
  • Up to 1x USB 2.0 OTG interface
Other Interfaces
  • SD Card: 1x SDIO/MMC
  • I2C: Up to 4x I²C
  • SPI:
    • Up to 3x SPI
    • Up to 2x QSPI
  • MIPI: 2x MIPI CSI
  • GPIO: 1x GPIO
  • PCIe: Up to 2x PCIe
  • I2S: Up to 6x I2S
General
  • Temperature sensor
  • Plug-in System: Board-to-board plug-in system 340 pins
  • Dimensions: 55 x 36 mm
OS
  • Linux
  • Android



Ordering Information

TQMa8MD-AA
  • TQMa8MD-AA, i.MX8M Dual Cortex®-A53/1,3 GHz, 8 GB eMMC Flash, 1 GB LPDDR4, 64 kB EEPROM, RTC, -25°C…+85°C

TQMa8MQ-AA

  • TQMa8MQ-AA, i.MX8M Quad Cortex®-A53/1,3 GHz, 8 GB eMMC Flash, 1 GB LPDDR4, 64 kB EEPROM, RTC, -25°C…+85°C
TQMa8MQL-AA
  • TQMa8MQL-AA, i.MX8M Quad Lite Cortex®-A53/1,3 GHz, 8 GB eMMC Flash, 2 GB LPDDR4, 64 kB EEPROM, RTC, -25°C…+85°C
STKa8Mx-AA
  • .STKa8Mx (Eval Kit) with TQMa8Mx-AA, i.MX8M/1,3 GHz, 1 GB LPDDR4, 8 GB eMMC Flash, 64 kB EEPROM, RTC, 2x USB 3.0 Host, 1x USB 2.0 OTG, 1x ETH 10/100/1000, 1x ePD, 1x LVDS/DSI, 1xHDMI, 2x MIPI CSI, 1x Mini PCIe + SIM, Module Signals on 2,54 mm PIN Header, Sound, RTC, Temperature sensor, Reset-Button, SD Card interface, Power Supply, 4 GB SD card, Cables
Starterkit STKa8Mx set
  • The core of the STKa8Mx set is the TQMa8Mx module with a Dual/Quad Cortex®-A53 CPU. The components contained in the starter kit constitute a modular system enabling you to develop your own product ideas. Development of graphic interfaces can be started immediately using the prepared combination of closed display unit and starter kit that are matched to each other. To develop your own hardware you can use the certified and qualified circuit components of the starter kit in your own designs.
