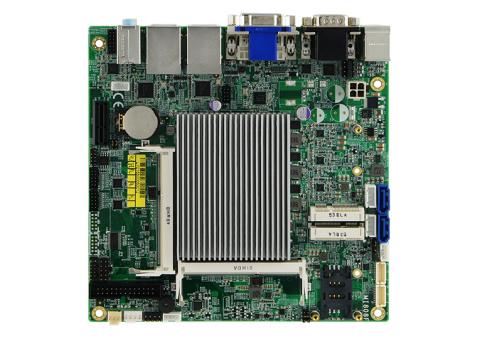

MI808
Versatile Mini-ITX Motherboard for Diverse Industrial Applications
The MI808 Mini-ITX Motherboard, designed by iBase, integrates the Intel® Pentium® N3710 or Celeron® N3010 processor, delivering efficient performance for a range of industrial applications. This motherboard is optimized for both power efficiency and computing power, accommodating up to 8GB of DDR3L memory across two SO-DIMM sockets. It supports multiple display interfaces, including VGA, DVI-D, and LVDS, catering to various display requirements. The MI808 stands out for its dual Intel® Gigabit LAN for reliable network connections, extensive I/O capabilities including USB ports, COM ports, and SATA III connectors, and expansion options through PCI-E, Mini PCI-E, mSATA, and CFast slots. Its wide-range power input and DC-power input design make it suitable for transportation, POS, mobile, and industrial automation sectors, ensuring flexibility and adaptability across different power environments.
Features
- Processor Support: Utilizes Intel® Pentium® N3710 or Celeron® N3010 processors for optimal performance.
- Memory Capacity: Offers up to 8GB of DDR3L memory through two SO-DIMM sockets.
- Display Options: Features VGA, DVI-D, and LVDS support for versatile display solutions.
- Network Connectivity: Includes dual Intel® Gigabit LAN for robust and reliable network connections.
- Expansion and I/O Flexibility: Provides PCI-E, Mini PCI-E, mSATA, and CFast slots alongside multiple USB and COM ports for extensive peripheral and expansion capabilities.
Specifications
CPU Socket | FCBGA1170 |
CPU | Intel® Pentium® N3710, up to 2.4GHz or Celeron® N3010, up to 2.24GHz |
PCH | N/A |
Memory | 2x DDR3L-1600 SO-DIMM socket, Max. 8GB |
BIOS | AMI |
Watchdog Timer | 256 levels |
H/W Monitor | Yes |
Storage Device Interface | 1x mSATA, 1x CFast (optional) |
Expansion Slots | 1x PCI-E (x1) |
Mini Type Slots | 1x Mini PCI-E |
Graphics Controller | Intel® Pentium® SoC integrated Intel® Gen-8 graphics |
Video Output | Supports DVI-D, CRT 24-bit dual-channel LVDS |
Ethernet | Intel® I211AT or I210AT Gigabit LAN |
I/O Chip | Fintek F81846AD-I |
Serial Port | 1x RS232/422/485 (jumper-less selection) 3x RS232, PS/2 keyboard/mouse 1x printer port |
USB 2.0 | 2x USB 2.0 via pin-header |
USB 3.X | 4x USB 3.0 on board |
Serial ATA | 2x SATA III |
Audio | Intel® Pentium SoC built-in HD audio + Realtek ALC269 codec |
TPM | TPM(2.0) |
Others | Digital I/O (4-in/4-out); 12V DC-in or 18V~24V; iSMART; TPM(2.0); SIM card slot, CFast (optional) |
Dimensions (L X W) | 170mm x 170mm (6.7" x 6.7") |
Power Consumption | Intel® Pentium® Processor N3710 1.6GHz w/ 2x 4GB DDR3L-1600 +19V: 1.01A |
Operating Temperature | 0°C~60°C ( 32°F~140°F) |
Storage Temperature | -20°C~80°C (-4°F~176°F) |
Relative Humidity | 90% (non-condensing @60°C) |
Ordering Information
MI808F-371 | Intel® Pentium® N3710 (2.56GHz) on board Mini-ITX motherboard with heatsink, DVI-D, VGA & LVDS, 2x Gigabit LAN, iSMART 3.2, TPM(2.0), DC-in 12V only |
MI808FW-371 | Intel® Pentium® N3710 (2.56GHz) on board Mini-ITX motherboard with heatsink, DVI-D, VGA & LVDS,2x Gigabit LAN, iSMART 3.2, TPM(2.0), 18V~24V DC-in |
MI808F-301 (w/ MOQ) | Intel® Celeron® N3010 (2.24GHz) on board Mini-ITX motherboard with heatsink, DVI-D, VGA & LVDS, 2x Gigabit LAN, iSMART 3.2, TPM(2.0), DC-in 12V only |
MI808FW-301 (w/ MOQ) | Intel® Celeron® N3010 (2.24GHz) on board Mini-ITX motherboard with heatsink, DVI-D, VGA & LVDS, 2x Gigabit LAN, iSMART 3.2, TPM(2.0), 18V~24V DC-in |
