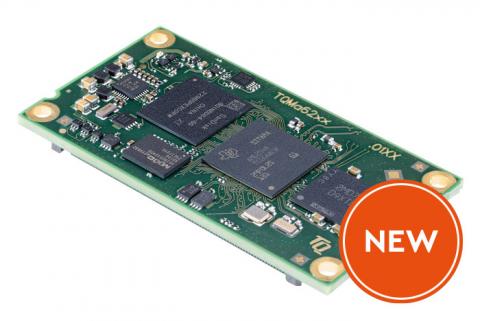

TQMa62xx Embedded Cortex®-A53 module

Based on the TI AM62xx for applications with enhanced computing & scalable graphics performance

The TQMa62xx embedded module, based on the Texas Instruments AM62xx processor family, offers advanced computing and scalable graphics performance for a wide range of applications. With options for Quad, Dual, or Single Cortex-A53 cores, this module provides scalable computing power to meet varying performance requirements.



One standout feature is its dual-display capability, supporting LVDS and RGB interfaces, complemented by a 3D GPU for enhanced graphics performance. The module supports LPDDR4 memory with ECC, ensuring data integrity in demanding applications.



For high-speed communication, the TQMa62xx features 2x Gbit Ethernet switches with TSN support, along with 3x CAN FD interfaces and 2x USB 2.0 ports. Despite its robust performance, this module maintains low power consumption, typically operating at just 2W.



Security is a priority, as the module integrates security functions for data protection. The TQMa62xx is backed by Texas Instruments, a trusted partner in embedded solutions, and is designed to accommodate pin-compatible processors within a single module design.



Whether in industrial automation, robotics, or other demanding applications, the TQMa62xx empowers engineers with the computing and graphics capabilities needed to drive innovation and efficiency.

Features

  • Dual-Display Support: It offers dual-display support with options for LVDS and RGB interfaces, enhancing visual output flexibility.
  • LPDDR4 Memory with ECC: The module supports LPDDR4 memory with Error-Correcting Code (ECC), ensuring reliable and efficient memory operations.
  • High-Speed Communication Interfaces: With 2x Gbit Ethernet switches (TSN), 3x CAN FD, and 2x USB 2.0 interfaces, this module facilitates high-speed data communication in various industrial applications.
  • Integrated Security Functions: The module includes integrated security functions, including a Secure Element (SE050) and a Real-Time Clock (RTC), enhancing security and timekeeping capabilities

Specifications

CPU
  • AM6254
  • AM6252
  • AM6251
  • AM6234
  • AM6232
  • AM6231
Memory
  • LPDDR4 - up to 2GB
  • EEPROM - 0/64 kbit
  • eMMC - Up to 64 GB
  • NOR Flash - up to 256 MB
Graphics
  • 1x LVDS (4 lanes)
  • 1x RGB (24bit)
  • 3D GPU (8G FLOPFS)
Communications Interfaces
  • Ethernet -  Up to 2x Gbit-Ethernet (TSN)
  • Serial Ports -Up to 9x UART
  • USB - Up to 2x USB 2.0 interface
  • CAN - Up to 3x CAN FDSerial Ports -Up to 9x UART
Other Interfaces
  • SD Card: Up to 3x SDIO
  • I2C: Up to 6x I2C
  • SPI: Up to 5x SPI Up to 1x OSPI
  • GPMC: Up to 1x GPMC
  • PWM frequency: Up to 3x PWM
  • Audio: 3x McASP
General
  • Dimensions - 55mm x 38mm
  • Plug-in System - Board-to-board plug-in system 320 pins (TBD) 0.5 mm Pitch
  • Temperature range -  Standard temperature range: -25°C…+85°C
  • Power supply - 3.3V
OS
  • Linux



Ordering Information

TQMa6231L-AA
  • TQMa6231L-AA, Quad Cortex®- A53 / 1,4GHz, Cortex®- M4 / 400MHz, 1GB LPDDR4, 8GB eMMC, 64 kB EEPROM, RTC, -40°C...+85°C

TQMa6254L-AA

  • TQMa6254L-AA, Quad Cortex®- A53 / 1,4GHz, Cortex®- M4 / 400MHz, 1GB LPDDR4, 8GB eMMC, 64 kB EEPROM, RTC, with 3D GPU support, -40°C...+85°C
