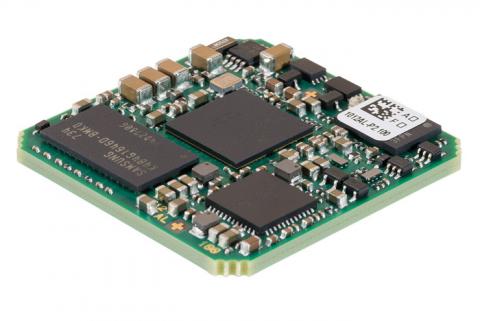

TQMLS1012AL Small Embedded Cortex-A53 module

Based on a Single Cortex-A53 LS1012A processor

The TQMLS1012A is an embedded module powered by a single Cortex-A53 processor variant, the LS1012A. With a clock speed of up to 1GHz, this module is designed for applications where a balance between power efficiency and processing capability is crucial. Equipped with up to 1GB of DDR3L memory, it ensures smooth and efficient data handling. It offers an array of communication interfaces, including two 10/100/1000 Mbit Ethernet ports, USB 2.0 and 3.0, UART RS232 ports, I2C, SPI, I2S, SATA 3.0, PCIe, and SDIO/MMC. The module operates in an extended temperature range of -40°C to +85°C, making it suitable for challenging environments.

Features

  • Single Cortex-A53 LS1012A processor with up to 1GHz clock speed.
  • 1GB DDR3L memory for efficient data handling.
  • Versatile communication interfaces, including Ethernet, USB, UART RS232, and more.
  • Extended temperature range for rugged applications.
  • Compact LGA form factor with a temperature sensor.

Specifications

CPU
  • CPU/Processor: Single Cortex®-A53 - Up to 1GHz
  • CPU variant: LS1012A
Memory
  • DDR3L: Up to 1 GB
  • Quad SPI NOR: Up to 2x QSPI (NOR Flash)
    • Up to 256 MB
  • EEPROM: 0/64-kbit
Communications Interfaces
  • Ethernet: Up to 2x Ethernet 10/100/1000 Mbit
  • Serial Ports: Up to 2x UART RS232
  • USB:
    • 1x USB 2.0
    • 1x USB 3.0
Other Interfaces
  • I2C: Up to 2x I2C
  • SPI: Up to 1x SPI
  • I2S: Up to 5x I²S
  • SATA: Up to 1x SATA 3.0
  • PCIe: Up to 1x PCIe
  • SD Card: Up to 2x SDIO/MMC
General
  • Dimensions: 31 mm x 31 mm
  • Temperature sensor
  • Plug-in System: LGA (Land Grid Array) 155 Pins
  • Power supply: 3.3 V
  • Temperature range: Extended temperature: -40°C…+85°C
OS
  • Linux

Ordering Information

TQMLS1012AL-AA

  • with LS1012A / Cortex® A53 / 1000 MHz, 64 MB QSPI NOR Flash, 512 MB DDR3L, 64 kB EEPROM, RTC, -40°C...+85°C, with Encryption

TQMLS1012AL-AB

  • with LS1012A / Cortex® A53 / 1000 MHz, 64 MB QSPI NOR Flash, 512 MB DDR3L, 64 kB EEPROM, RTC, -40°C...+85°C, without Encryption

STKLS1012AL-AA

  • STKLS1012AL-AA, TQMLS1012A, Cortex®A53/1GHz, 64 MB Q-SPI NOR Flash, 512 MB DDR3L, 64 kB EEPROM, -20°C…+70°C, 2x USB 3.0, 5x ETH 10/100/1000, 2x Mini PCIe (1x only USB, SIM-Card), 1x SATA M.2, USB –Debug Interface, JTAG RTC, Temperature sensor, Reset-Button, SD-Card interface, Power Supply, 4 GB SD card, Cables

STKLS1012AL-SET

  • The core of the STKLS1012AL set is the TQMLS1012AL module with Cortex®-A53 CPU. The components
    contained in the starter kit constitute a modular system enabling you to develop your own product
    ideas. To develop your own hardware you can use the certified and qualified circuit components of thestarter
    kit in your own designs.
