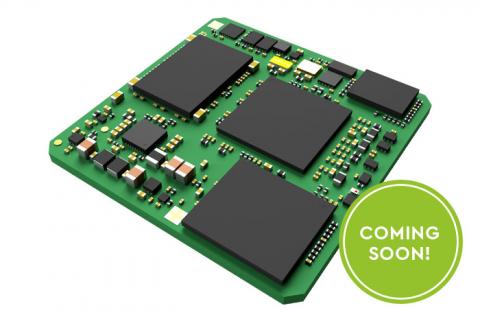

TQMa62xxL Embedded Cortex-A53 module

TI AM62xx for applications with enhanced computing & scalable graphics performance

The TQMa62xxL Embedded Module, based on the Texas Instruments AM62xx processor family, delivers enhanced computing power and scalable graphics performance for a wide range of industrial applications. Featuring 4/2/1 Cortex A53 cores, this module provides flexible and scalable computing performance to meet diverse application requirements.



With dual-display support for LVDS and RGB, as well as an optional 3D GPU, it offers versatile graphics capabilities. The LPDDR4 support with ECC ensures efficient and reliable memory performance, while integrated security functions enhance data protection.



This module facilitates high-speed communication with 2x Gbit Ethernet switches with TSN support, 3 x CAN FD, and 2x USB 2.0 interfaces, making it suitable for demanding industrial applications. Despite its powerful performance, it maintains low power consumption, typically operating at just 2W.



Designed with Texas Instruments' expertise, the TQMa62xxL module provides a seamless transition from the AM335x family, offering superior graphics, computing power, and industrial interfaces. It comes in a compact LGA form factor with various memory and storage options, making it an ideal choice for embedded systems in industrial automation, communication, and more.

Features

  • Scalable Cortex A53 Cores: Offers 4/2/1 Cortex A53 cores for adaptable computing performance to meet various application needs.
  • Dual-Display Support: Provides LVDS and RGB support for dual-display configurations along with an optional 3D GPU for versatile graphics capabilities.
  • Memory Efficiency: Features LPDDR4 support with ECC, ensuring efficient and reliable memory performance.
  • Robust Communication: Facilitates high-speed communication through 2x Gbit Ethernet switches with TSN support, 3 x CAN FD, and 2x USB 2.0 interfaces.
  • Integrated Security: Enhances data protection with integrated security functions, making it suitable for secure industrial applications

Specifications

CPU
  • AM6254
  • AM6252
  • AM6251
  • AM6234
  • AM6232
  • AM6231
Memory
  • LPDDR4: Up to 2 GB
  • EEPROM: 0/64-kbit
  • eMMC: Up to 64 GB
  • NOR Flash: Up to 256 MB
Graphics
  • 1x LVDS (4 lanes)
  • 1x RGB (24bit)
  • 3D GPU (8G FLOPFS)
Communications Interfaces
  • Ethernet: Up to 2x Gbit-Ethernet (TSN)
  • Serial Ports: Up to 9x UART
  • CAN: Up to 3x CAN FD
  • USB:Up to 2x USB 2.0 interface
Other Interfaces
  • SD Card: Up to 3x SDIO
  • I2C: Up to 6x I2C
  • SPI: Up to 5x SPI |Up to 1x OSPI
  • GPMC: Up to 1x GPMC
  • PWM frequency: Up to 3x PWM
  • Audio: 3x McASP
General
  • Power supply: 3,3V

  • Plug-in System: LGA (Land Grid Array) 366 pins

  • Dimensions: 38 x 38 mm

  • Temperature range: Standard temperature range: -25°C…+85°C |Extended temperature: -40°C…+85°C

OS
  • Linux

Ordering Information

TQMa6231L-AA

  • TQMa6231L-AA, Quad Cortex®- A53 / 1,4GHz, Cortex®- M4 / 400MHz, 1GB LPDDR4, 8GB eMMC, 64 kB EEPROM, RTC, -40°C...+85°C

TQMa6254L-AA

  • TQMa6254L-AA, Quad Cortex®- A53 / 1,4GHz, Cortex®- M4 / 400MHz, 1GB LPDDR4, 8GB eMMC, 64 kB EEPROM, RTC, with 3D GPU support, -40°C...+85°C
