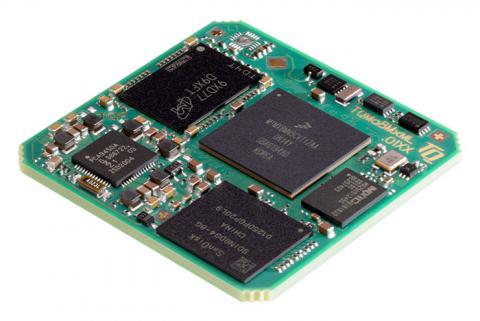

TQMa8MxNL Embedded Cortex®-A53 module

Based on i.MX8M Nano with enhanced Audio properties

The TQMa8MxNL Embedded Module, featuring an embedded Cortex-A53 processor based on the i.MX8M Nano from NXP, is designed to meet the demands of embedded computing engineers. This module stands out with its advanced audio properties, integrated Cortex-M7 processor, and support for high-speed communication via 1x Gbit Ethernet and 1x USB 2.0 interface. With low power consumption and integrated security functions, it's well-suited for a variety of applications. The CPU variants, including Lite versions with reduced graphics performance, provide flexibility and performance choices for engineers.

Features

  • Advanced audio properties
  • Integrated Cortex-M7 for real-time and security
  • High-speed communication through Gbit Ethernet and USB 2.0
  • Low power consumption
  • Versatile CPU variants for different performance needs

Specifications

CPU
  • CPU/Processor:
    • Cortex®-A53 - Up to 1,5GHz
  • CPU variant:
    • i.MX8M Nano Solo
    • i.MX8M Nano Solo Lite
    • i.MX8M Nano Dual
    • i.MX8M Nano Dual Lite
    • i.MX8M Nano Quad
    • i.MX8M Nano Quad Lite
Memory
  • LPDDR4: Up to 2 GB
  • EEPROM: 0/64-kbit
  • eMMC: Up to 64 GB
  • Quad SPI NOR: Up to 256 MB
Graphics
  • Graphics: LCD Interface: 1x MIPI DSI (4 Lanes)
  • Camera: 1x MIPI CSI2 (4 Lanes)
Communications Interfaces
  • Ethernet: 1x Ethernet 10/100/1000 Mbit
  • Serial Ports: Up to 4x UART
  • USB: 1x USB 2.0 high-speed HOST interface
Other Interfaces
  • I2C: Up to 4x I2C
  • I2S: Up to 12x I²S
  • SPI:
    • Up to 3x SPI
    • Up to 1x QSPI
  • Audio:
    • Up to 1x SPDIF
    • Up to 8x PDM Mic.
  • SD Card: Up to 3x SDIO / eMMC
General
  • Temperature sensor
  • Temperature range:
    • Standard temperature range: -25°C…+85°C
    • Extended temperature: -40°C…+85°C
  • Power supply: 5 V
  • Plug-in System: LGA (Land Grid Array) 280 pins
  • Dimensions: 38 x 38 mm
OS
  • Linux
  • Android on request

Ordering Information

TQMa8MSNL-AA

  • TQMa8MSNL-AA, i.MX8M Nano Single Cortex®-A53/1.4 GHz, 8 GB eMMC Flash, 1 GB LPDDR4, 64 kB EEPROM, RTC, -25°C...+85°C

TQMa8MDNL-AA

  • TQMa8MDNL-AA, i.MX8M Nano Dual Cortex®-A53/1.4 GHz, 8 GB eMMC Flash, 1 GB LPDDR4, 64 kB EEPROM, RTC, -25°C...+85°C

TQMa8MQNL-AA

TQMa8MQNL-AA, i.MX8M Nano Quad Cortex®-A53/1.4 GHz, 8 GB eMMC Flash, 1 GB LPDDR4, 64 kB EEPROM, RTC, -25°C...+85°C

STKa8MxNL-AA

STKa8MxNL (Eval Kit) with TQMa8MxNML-AA, i.MX8M Nano Quad Cortex®-A53/1.4 GHz, 1 GB LPDDR4, 8 GB eMMC Flash, 64 kB EEPROM, RTC, 2x USB 2.0 HOST, 1x ETH 10/100/1000, 1x eDP, 1x LVDS, 1x MIPI CSI, 1x Mini PCIe (only USB) + SIM Card, Audio, Temperature sensor, Reset-Button, SD Card interface, Power Supply, 4 GB SD card, Cables

Starterkit STKa8MxNL set

The core of the STKa8MxNL set is the TQMa8MxNL module with a Quad Cortex®-A53 CPU. The components contained in the starter kit constitute a modular system enabling you to develop your own product ideas. Development of graphic interfaces can be started immediately using the prepared combination of closed display unit and starter kit that are matched to each other. To develop your own hardware you can use the certified and qualified circuit components of the starter kit in your own designs.
