IEI Smart Healthcare Panel PC’s, Terminals and Computing

IEI medical solutions not only offers powerful and useful devices but also provides a practical total solution to advance medical technology. IEI healthcare solutions aim to reduce human error and create a paperless environment by utilizing IEI smart medical products. The highly modular design helps users manage various situations in a flexible way and enhance work efficiency in their daily routine.

IEI has several award-winning solutions including medical panel computers, terminals, and computing solutions. The computing solutions also include AI edge-based intelligent platforms with accelerators.

The IEI POCi-W24C-ULT5 24-inch Intelligent Point of Care Terminal

IEI now offers a profoundly configurable medical panel PC with slots that can take a variety of useful add-ons. All within the same slot, one can choose to add: a PoE card, video capture card, Isolation I/O card, medical-grade power supply, or a battery.

Additionally, iEi has developed their own DICOM module preset for visual consistency.

This panel PC also features a powerful Intel 14nm i7 processor, aluminum bezel (IP66), Chemical etching AG coating, and a PCIe x4 expansion slot along with the DICOM preset module.

Interfaces:

Line-up of Panel PC’s

Point-of-care Panel PCs

	CPU / Chipset	Expansion	I/O	Features
POC-17C-ULT3	Intel® Skylake-ULT platform Core™ i5-6300U and Celeron® 3955U	1 x PCIe Mini reserved	1 x RJ-11 for barcode module (1D/2D) 4 x USB 2.0 (2 for side) 4 x USB 3.0 port 1 x HDMI output 2 x GbE LAN port 1 x RS-232/422/485 1 x 12~28V DC jack	Size: 17”(5:4) Resolution: 1280 x 1024 Brightness (cd/m²): 350
POC-W24C-ULT3	6th generation Intel® mobile ULT Core™ i7-6600U / Core™ i5-6300U /Celeron® 3855U 7th generation Intel® mobile ULT Kaby Lake on-board SoC (by project base)	1 x PCIe Mini reserved for E-Window expansion	1 x RJ-11 for 1D/2D barcode reader 4 x USB 2.0 (2 on the side) 4 x USB 3.0 port 1 x HDMI output 2 x GbE LAN port 1 x RS-232/422/485 1 x 12~28V DC jack	Size: 24" Resolution: 1920 (W) x 1080 (H) Brightness (cd/m²): 250
POCi-W24C-ULT5	8th Generation Intel® mobile ULT Core™ i7/i5 processor	Modular PCIe x4 expansion slot	2 x USB 2.0 (side) 1 x DC jack 1 x HDMI output 1 x Isolated 1.5kV RS-232 1 x Combo audio-out/mic-in 1 x Isolated Gigabit LAN (I211) 1 x Isolated Gigabit LAN (I219 supports Intel® vPro) 4 x USB 3.2 Gen 2 (10Gb/s) port	Size: 24" Resolution: 1920 (W) x 1080 (H) Brightness (cd/m²): 350

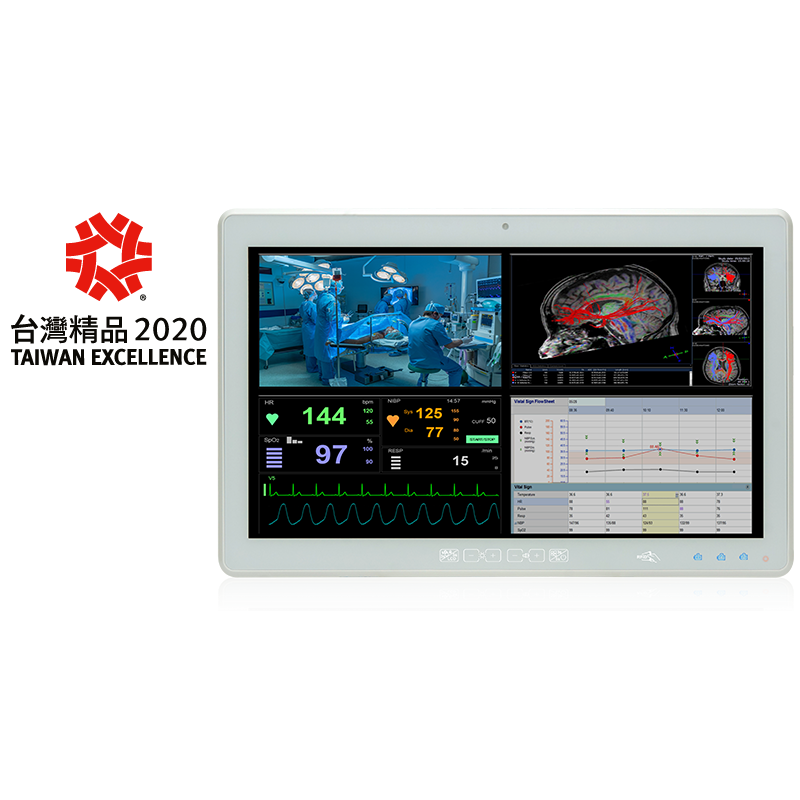

POCm-W22C-ULT3	6th generation Intel® mobile ULT Core™ i7-6600U / Core™ i5-6300U /Celeron® 3855U	1 x PCIe Mini reserved for E-Window expansion	2 x USB 2.0 (side) 4 x USB 3.0 port 2 x HDMI output 2 x GbE LAN port 2 x RS-232/422/485 1 x Audio out (side) + 1 x Mic in (side) 1 x Digital Mic 1 x DC jack	Size: 22" Resolution: 1920 (W) x 1080 (H) Brightness (cd/m²): 250
POCm-W24C-ULT3	6th generation Intel® mobile ULT Core™ i7-6600U / Core™ i5-6300U /Celeron® 3855U	1 x PCIe Mini reserved for E-Window expansion	Rear 1 x 1.5kV isolation COM port 1 x 12~28V DC Jack 1 x GbE LAN port 2 x USB 3.0 port Bottom 1 x RJ-11 for barcode scanner (1D/2D) 1 x GbE LAN port 2 x USB 3.0 port 1 x HDMI output Side 1 x HDMI input 2 x USB 2.0 port 1 x Audio out 1 x Mic in	Size: 24" Resolution: 1920 (W) x 1080 (H) Brightness (cd/m²): 250

Bedside Terminal Panel PC

	CPU / Chipset	Expansion	I/O
BIS-W19C-ULT4	Intel® Kabylake ULT platform Core™ i5-7300U and Celeron® 3865U	LCD: 18.5” (16:9) Brightness (cd/m²): 250/350 Max Resolution: 1366 (W) x 768 (H) / 1920 (W) x 1080 (H)	Rear 1 x 1.5kV isolation COM port 1 x 12~28V DC Jack 1 x GbE LAN port 2 x USB 3.0 port Bottom 1 x RJ-11 for barcode scanner (1D/2D) 1 x GbE LAN port 2 x USB 3.0 port 1 x HDMI output Side 1 x HDMI input 2 x USB 2.0 port 1 x Audio out 1 x Mic in

CPU / Chipset

Expansion

I/O

BIS-W19C-ULT4

Intel® Kabylake ULT platform Core™ i5-7300U and Celeron® 3865U

LCD: 18.5” (16:9)
Brightness (cd/m²): 250/350
Max Resolution: 1366 (W) x 768 (H) / 1920 (W) x 1080 (H)

Rear
1 x 1.5kV isolation COM port
1 x 12~28V DC Jack
1 x GbE LAN port
2 x USB 3.0 port

Bottom
1 x RJ-11 for barcode scanner (1D/2D)
1 x GbE LAN port
2 x USB 3.0 port
1 x HDMI output

Side
1 x HDMI input
2 x USB 2.0 port
1 x Audio out
1 x Mic in

Fitness Panel PC

	CPU / Chipset	Display	I/O	Features
FIT1-W10A-IMX6	Freescale™ i.MX6 Cortex™-A9 quad core 1.0 GHz	LCD Size: 10.1" Resolution: 1280(W) x 800(H)	1 x Enthernet 1 x Csafe 2 x Hand Pulse 1 x TV 1 x HDMI In 1 x Keypad 1 x USB 2.0 1 x LCB	(Ready for ODM / OEM) Support Android 5.1 OS Flexible ID Design (Open Frame) IEI Customer Reference Board (10.1"/15.6"/18.5" share the same main board) Waterproof : IPX5 (For customized ID) Support BLE / ANT+ / NFC Support ATSC / DVBT TV Dongle

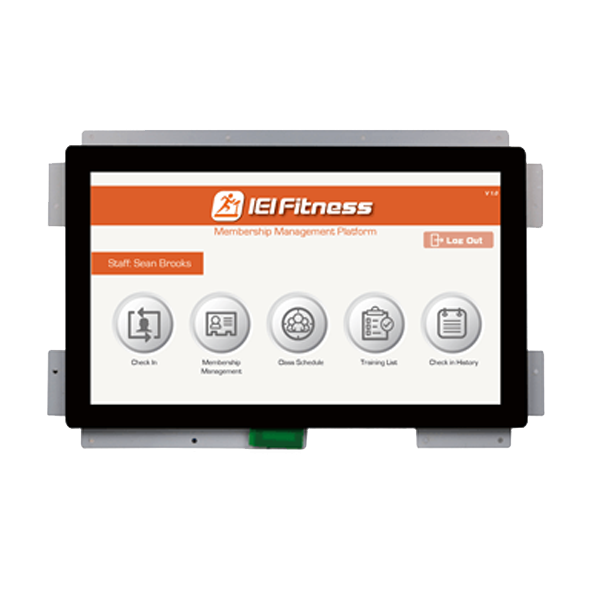

FIT1-W15A-IMX6	Freescale™ i.MX6 Cortex™-A9 quad core 1.0 GHz	LCD Size: 15.6" Resolution: 1366(W) x 768(H)	1 x Enthernet 1 x Csafe 2 x Hand Pulse 1 x TV 1 x HDMI In 1 x Keypad 1 x USB 2.0 1 x LCB	(Ready for ODM / OEM) Support Android 5.1 OS Flexible ID Design (Open Frame) IEI Customer Reference Board (10.1"/15.6"/18.5" share the same main board) Waterproof : IPX5 (For customized ID) Support BLE / ANT+ / NFC Support ATSC / DVBT TV Dongle
FIT1-W18A-IMX6	Freescale™ i.MX6 Cortex™-A9 quad core 1.0 GHz	LCD Size: 18.5"" Resolution: 1366(W) x 768(H)	1 x Enthernet 1 x Csafe 2 x Hand Pulse 1 x TV 1 x HDMI In 1 x Keypad 1 x USB 2.0 1 x LCB	(Ready for ODM / OEM) Support Android 5.1 OS Flexible ID Design (Open Frame) IEI Customer Reference Board (10.1"/15.6"/18.5" share the same main board) Waterproof : IPX5 (For customized ID) Support BLE / ANT+ / NFC Support ATSC / DVBT TV Dongle

A sister company to iEi, BriteMed specializes in certified medical monitors for medical imaging, expertly designed for precise, consistent images with a variety of connectivity. The Endoscopy monitors and Surgical monitors come in three varieties by video input connections: HDMI, Analog inputs and VGA/DVI inputs. Additionally these monitors include 3G-SDI, component, NTSC/PAL, and S-Video inputs.

Endoscopy Monitors

	21" Endoscopy Monitor w/ Analog Inputs	21" Endoscopy Monitor w/ HDMI Inputs	21" General Endoscopy Monitor
LCD size (inch)	21.5" (16:9)	21.5" (16:9)	21.5" (16:9)
Resolution	1920 (W) x 1080 (H) pixels	1920 (W) x 1080 (H) pixels	1920 (W) x 1080 (H) pixels
Brightness (cd/m2)	250 (typical)	250 (typical)	250 (typical)
Contrast ratio	5000:1 (typical)	5000:1 (typical)	5000:1 (typical)
Viewing angle	178°/178° (typical)	178°/178° (typical)	178°/178° (typical)
Gamma Correction	Factory calibrated gamma 2.0 & DICOM	Factory calibrated gamma 2.0 & DICOM	Factory calibrated gamma 2.0 & DICOM
Color Temperature	Factory calibrated 4500K, 5500K, 6500K, 7500K	Factory calibrated 4500K, 5500K, 6500K, 7500K	Factory calibrated 4500K, 5500K, 6500K, 7500K
Power Requirement	Medical grade power adaptor: input: 100~240V AC 50~60Hz; output: 12V DC/5.42A	Medical grade power adaptor: input: 100~240V AC 50~60Hz; output: 12V DC/5.42A	Medical grade power adaptor: input: 100~240V AC 50~60Hz; output: 12V DC/5.42A
Function Keys	OSD rotary knob x 1 Input source quick selection x 1 Monitor sleep x 1	OSD rotary knob x 1 Input source quick selection x 1 Monitor sleep x 1	OSD rotary knob x 1 Input source quick selection x 1 Monitor sleep x 1
Dimensions (L x W x H)	530 x 325 x 53 mm	530 x 325 x 53 mm	530 x 325 x 53 mm
Weight	6.6 kg	6.6 kg	6.6 kg
Operating Temperature	0°C~40°C	0°C~40°C	0°C~40°C
Storage Temperature	-20°C ~60°C	-20°C ~60°C	-20°C ~60°C
Medical Certifications	ANSI/AAMI ES60601-1,EN60601-1,CAN/CSA C22.2 No. 60601, FCC Class B part 18	ANSI/AAMI ES60601-1,EN60601-1,CAN/CSA C22.2 No. 60601, FCC Class B part 18	ANSI/AAMI ES60601-1,EN60601-1,CAN/CSA C22.2 No. 60601, FCC Class B part 18
VGA (DB-15)	Input: 1	Input: 1	Input: 1
DVI-D	Input: 1	Input: 1	Input: 1
Component	Input: BNC x 1 (Y/Pb/Pr, R/Gs/B, R/G/B/C-Sync, R/G/B/H-Sync/V-Sync) Output (loop through):BNC x 1 (Y/Pb/Pr, R/Gs/B, R/G/B/C-Sync, R/G/B/H-Sync/V-Sync)	N/A	N/A
CVBS	Input: BNC x 1 (NTSC, PAL) Output (loop through): BNC x 1 (NTSC, PAL)	N/A	N/A
S-Video	Input: 1 Output (loop through): 1	N/A	N/A
Audio	Input: Phone jack x 1 Output 0.8W x 2	Input: Phone jack x 1 Output 0.8W x 2	Input: Phone jack x 1 Output: 0.8W x 2
HDMI 1.4 (optional)	Input: 1 Output (loop through): 1 *Only for MMS-21CAH-R11 & MMS-21CAHS-R11 models	Input: 1 Output (loop through): 1	N/A
3G-SDI (Optional)	Input: 1 Output (loop through): 1 *Only for MMS-21CAS-R11 & MMS-21CAHS-R11 models	Input: 1 Output (loop through): 1 *Only for MMS-21CHS-R11 & MMS-21CAHS-R11 models	Input: 1 Output (loop through): 1 *Only for MMS-21CS-R11 model
Touch screen (optional)	N/A	N/A	N/A

Ordering Information

MMS-21CA-R11	21.5", White, 1920x1080, VGA/DVI-D/Component/CVBS/S-Video input, 100~240 VAC to 12V DC power adaptor
MMS-21CAH-R11	21.5", White, 1920x1080, VGA/DVI-D/Component/CVBS/S-Video/HDMI input, 100~240 VAC to 12V DC power adaptor
MMS-21CAS-R11	21.5", White, 1920x1080, VGA/DVI-D/Component/CVBS/S-Video/3G SDI input, 100~240 VAC to 12V DC power adaptor
MMS-21CAHS-R11	21.5", White, 1920x1080, VGA/DVI-D/Component/CVBS/S-Video/HDMI/3G SDI input, 100~240 VAC to 12V DC power adaptor
MMS-27CA-R10	27" 1920x1080 color monitor, VGA/DVI-D/Component/CVBS/S-Video input, 100~240 VAC to 12V DC power adaptor
MMS-27CAH-R10	27” 1920x1080 color monitor, VGA/DVI-D/Component/CVBS/S-Video/HDMI input, 100-240V AC to 12V DC power adaptor
MMS-27CAS-R10	27” 1920x1080 color monitor, VGA/DVI-D/Component/CVBS/S-Video/3G SDI input, 100~240 VAC to 12V DC power adaptor
MMS-27CAHS-R10	27” 1920x1080 color monitor, VGA/DVI-D/Component/CVBS/S-Video/HDMI/3G SDI input, 100~240 VAC to 12V DC power adaptor
MMS-27C-R10	27" 1920x1080 color monitor, VGA/DVI-D input, 100~240 VAC to 12V DC power adaptor
MMS-27CS-R10	27" 1920x1080 color monitor, VGA/DVI-D/3G SDI input, 100~240 VAC to 12V DC power adaptor

Surgical Monitors

	27" FHD Surgical Monitor w/ HDMI Input	27" Surgical Monitor w/ Analog Inputs	27" Surgical Monitor w/ VGA & DVI Inputs
LCD size (inch)	27"(16:9)	27"(16:9)	27"(16:9)
LCD size (inch)	27"(16:9)	27"(16:9)	27"(16:9)
Resolution	1920 (W) x 1080 (H) pixels	1920 (W) x 1080 (H) pixels	1920 (W) x 1080 (H) pixels
Brightness (cd/m2)	700 (typical)	700 (typical)	700 (typical)
Contrast ratio	178°/178° (typical)	1000:1 (typical)	178°/178° (typical)
Viewing angle	178°/178° (typical)	178°/178° (typical)	178°/178° (typical)
Gamma Correction	Factory calibrated gamma 2.0 & DICOM	Factory calibrated gamma 2.0 & DICOM	Factory calibrated gamma 2.0 & DICOM
Color Temperature	Factory calibrated 5500K, 6500K, 7500K, 9300K	Factory calibrated 5500K, 6500K, 7500K, 9300K	Factory calibrated 5500K, 6500K, 7500K, 9300K
Power Requirement	Medical grade power adaptor: input: 100~240V AC 50~60Hz; output: 12V DC/7.5A	Medical grade power adaptor: input: 100~240V AC 50~60Hz; output: 12V DC/7.5A	Medical grade power adaptor: input: 100~240V AC 50~60Hz; output: 12V DC/7.5A
Function Keys	1 x MENU 1 x Input source 1 x Custom input 1 x Backlight up/+ 1 x backlight down/- 1 x Image size adjustment	1 x MENU 1 x Input source 1 x Custom input 1 x Backlight up/+ 1 x backlight down/- 1 x Image size adjustment	1 x MENU 1 x Input source 1 x Custom input 1 x Backlight up/+ 1 x backlight down/- 1 x Image size adjustment
Dimensions (L x W x H)	657 x 399 x 59.5 mm	657 x 399 x 59.5 mm	657 x 399 x 59.5 mm
Weight	10.5 kg	10.5 kg	10.5 kg
Operating Temperature	0°C~40°C	0°C~40°C	0°C~40°C
Storage Temperature	-20°C ~60°C	-20°C ~60°C	-20°C ~60°C
Medical Certifications	ANSI/AAMI ES60601-1,EN60601-1,CAN/CSA C22.2 No. 60601, FCC Class B part 18	ANSI/AAMI ES60601-1,EN60601-1,CAN/CSA C22.2 No. 60601, FCC Class B part 18	ANSI/AAMI ES60601-1,EN60601-1,CAN/CSA C22.2 No. 60601, FCC Class B part 18
VGA (DB-15)	Input: 1	Input: 1	Input: 1
DVI-D	Input: 1	Input: 1	Input: 1
Component	N/A	Input: BNC x 1 (Y/Pb/Pr, R/Gs/B, R/G/B/C-Sync, R/G/B/H-Sync/V-Sync) Output (loop through):BNC x 1 (Y/Pb/Pr, R/Gs/B, R/G/B/C-Sync, R/G/B/H-Sync/V-Sync)	N/A
CVBS	N/A	Input: BNC x 1 (NTSC, PAL) Output (loop through): BNC x 1 (NTSC, PAL)	N/A
S-Video	N/A	Input: 1 Output (loop through): 1	N/A
Audio	Input: Phone jack x 1 Output: 0.8W x 2	Input: Phone jack x 1 Output: 0.8W x 2	Input: Phone jack x 1 Output: 0.8W x 2
HDMI 1.4 (optional)	Input: 1 Output (loop through): 1	Input: 1 Output (loop through): 1 *Only for MMS-27CAH-R10 & MMS-27CAHS-R10 models	N/A
3G-SDI (Optional)	Input: 1 Output (loop through): 1 *Only for MMS-27CHS-R10 & MMS-27CAHS-R10 models	Input: 1 Output (loop through): 1 *Only for MMS-27CAS-R10 & MMS-27CAHS-R10 models	Input: 1 Output (loop through): 1 *Only for MMS-27CS-R10 model
Touch screen (optional)	N/A	N/A	N/A

Ordering Information

MMS-27CH-R10	27" Full HD color monitor, VGA, DVI-D, 100~240 VAC to 12V DC power adaptor
MMS-27CAH-R10	27” 1920x1080 color monitor, VGA/DVI-D/Component/CVBS/S-Video/HDMI input, 100-240V AC to 12V DC power adaptor
MMS-27CHS-R10	27” 1920x1080 color monitor, VGA/DVI-D/HDMI/3G SDI input, 100~240 VAC to 12V DC power adaptor
MMS-27CAHS-R10	27” 1920x1080 color monitor, VGA/DVI-D/Component/CVBS/S-Video/HDMI/3G SDI input, 100~240 VAC to 12V DC power adaptor
MMS-27CA-R10	27" 1920x1080 color monitor, VGA/DVI-D/Component/CVBS/S-Video input, 100~240 VAC to 12V DC power adaptor
MMS-27CAH-R10	27” 1920x1080 color monitor, VGA/DVI-D/Component/CVBS/S-Video/HDMI input, 100-240V AC to 12V DC power adaptor
MMS-27CAS-R10	27” 1920x1080 color monitor, VGA/DVI-D/Component/CVBS/S-Video/3G SDI input, 100~240 VAC to 12V DC power adaptor
MMS-27CAHS-R10	27” 1920x1080 color monitor, VGA/DVI-D/Component/CVBS/S-Video/HDMI/3G SDI input, 100~240 VAC to 12V DC power adaptor
MMS-27C-R10	27" 1920x1080 color monitor, VGA/DVI-D input, 100~240 VAC to 12V DC power adaptor
MMS-27CS-R10	27" 1920x1080 color monitor, VGA/DVI-D/3G SDI input, 100~240 VAC to 12V DC power adaptor

Also ask about BriteMed’s Touch Medical Monitors

IEI is known for:

Medical and industrial computing products and instruments, embedded boards and systems, as well as AI processing solutions. With several award-winning solutions, iEi has demonstrated leadership in the market. They have alliances with Intel, Microsoft, and Amazon for their leading-edge technology. Customized solutions are also available including electrical/digital modifications, mechanical structures and housing, software options, etc. Sister company BriteMed takes this portfolio further into precision medical imaging.
