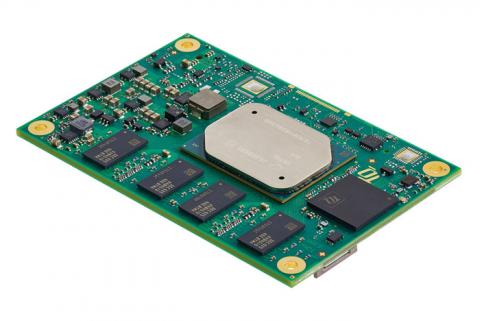

TQMxE39M COM Express® Mini Modul (Type 10)
Intel Atom® x5/x7 E3900
The TQ TQMxE39M is a versatile COM Express Mini module powered by Intel Atom x5/x7 E3900 processors, belonging to the "Apollo Lake" family. This compact module brings exceptional computing performance, security features, and multimedia capabilities to a wide range of industries, including real-time computing, industrial automation, surveillance, aviation, healthcare, and retail.
Complying with the international PICMG standard COM Express Mini (Type 10), the TQMxE39M offers robust connectivity options, including 8 USB ports (including 2 USB 3.0), up to 4 PCIe lanes, and a Gbit Ethernet port. This enables high-speed communication with peripherals and various interfaces on the carrier board.
The integrated Intel graphics processor delivers outstanding 4K resolution graphics, immersive 3D processing, and enhanced video encoding and playback capabilities. Time-coordinated computing features support synchronized processes within IoT networks and industrial control applications.
With up to 64 GB of onboard eMMC storage, flexible display options, and the TQMx86 board controller for thermal management and watchdog functionality, the TQMxE39M provides engineers with a highly adaptable and reliable solution. It can operate seamlessly in challenging environments, with temperature support ranging from -40°C to +85°C, making it suitable for rugged applications.
In summary, the TQMxE39M COM Express Mini module offers exceptional performance and flexibility, making it an ideal choice for FPGA engineers in various industries seeking a robust and compact computing solution.
Features
- Processor Versatility: Support for Intel Atom x5/x7 E3900 processors provides a range of dual/quad-core options with clock speeds up to 2.5 GHz.
- Robust Connectivity: Offers 8 USB ports (including 2 USB 3.0), up to 4 PCIe lanes, and a Gbit Ethernet port for versatile high-speed communication.
- Enhanced Graphics: Integrated Intel graphics processor supports up to three independent displays with 4K UHD resolution and immersive 3D processing.
- Storage and Memory Flexibility: Options include up to 64 GB of onboard eMMC storage and support for DDR3L memory, ensuring adaptable configurations.
- Rugged Reliability: Operates reliably in harsh environments with an extended temperature range from -40°C to +85°C and protective coating options.
Specifications
CPU |
|
Memory |
|
Graphics |
|
Communications Interfaces |
|
Other Interfaces |
|
General |
|
Ordering Information
TQMxE39M-AA |
|
TQMxE39M-AB |
|
TQMxE39M-AC |
|
TQMxE39M-AD |
|
TQMxE39M-AF |
|
MB-COME10-1 |
|
TQ Embedded is known for:
- Precision German engineering, now with a North America presence
- Robust industrial products with support
- Widest portfolio of embedded processing architectures: ARM, x86, PowerPC
- Comprehensive in-house process and facilities for true long-life availability
- Modules with full signal availability (ALL signals available, not just selective groups)
- In-house full control: design, manufacturing, specialized adaptations
- Robust baseboard options, production-ready for mounting their SOM products
