TQMLS1046A Embedded Quad Cortex®-A72

Based on the Arm® Quad Cortex®-A72 and the LS1046A NXP processor

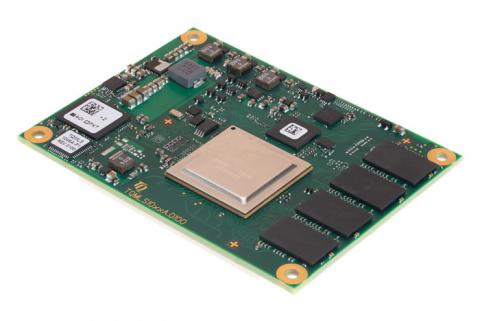

The TQMLS1046A is an embedded Quad Cortex-A72 module, leveraging the power of the LS1046A processor from NXP. It boasts high-speed communication capabilities with 2x 10 Gbit Ethernet, 8x Gbit Ethernet, 3x PCIe, and 3x USB 3.0 interfaces, making it well-suited for data-intensive tasks in networking and industrial automation. This module offers up to 8 ARM Cortex-A53 cores for optimized performance and efficient power utilization. With DDR4 and ECC protection, it ensures reliable memory operation. Additionally, the TQMLS1046A supports an extended temperature range and incorporates security functions, making it a robust choice for embedded applications.

Features

  • Quad Cortex-A72 LS1046A processor for high-performance computing.
  • Versatile connectivity with multiple Ethernet and USB ports.
  • DDR4 with optional ECC protection for reliable memory.
  • Wide temperature range and voltage monitoring for rugged environments.
  • Board-to-board plug-in system with a compact form factor.

Specifications

CPU
  • CPU/Processor:
    • Cortex®-A72 - Up to 1,8GHz
  • CPU variant:
    • LS1046A Quad Core
    • LS1026A Dual Core
Memory
  • DDR4: DDR4-SDRAM: Up to 8 GB
    • ECC protection (optional)
  • EEPROM: 0/64-kbit
  • Quad SPI NOR: Up to 512 MB
  • eMMC: Up to 64 GB
Communications Interfaces
  • Ethernet:
    • Up to 2x Ethernet 10 Gbit
    • Up to 10x Ethernet 10/100/1000 Mbit
  • Serial Ports: Up to 4x UART
  • USB: Up to 3x USB 3.0 high-speed HOST interface
Other Interfaces
  • SD Card: Up to 1x SDIO/MMC
  • SPI: Up to 1x SPI
  • SATA: Up to 1x SATA 3.0
  • PCIe: Up to 3x PCIe 3.0
  • I2C: Up to 4x I2C
General
  • Dimensions: 80 mm x 60 mm
  • Temperature range: Extended temperature: -40°C…+85°C
  • Power supply: 5 V
  • General: Temperature sensor
  • Voltage Monitoring
  • Plug-in System: Board-to-board plug-in system 420 pins
OS
  • Linux
  • VxWorks on request

Ordering Information

TQMLS1046A-AA

  • LS1046/1.8 GHz, 128 MB QSPI NOR Flash, 8 GB eMMC, 2 GB DDR4+ ECC, 64 kB EEPROM, RTC, -40°C...+85°C

TQMLS1046A-AB

  • LS1046/1.8 GHz, 128 MB QSPI NOR Flash, 8 GB eMMC, 8 GB DDR4+ ECC, 64 kB EEPROM, RTC, -40°C...+85°C

STKLS10xxA-AA

  • STKLS10xxA (Eval Kit) mit TQMLS10xx-AA, LS10xxA/1.6 GHz, 2 GB DDR4, 128 MB QSPI NOR Flash, 8 GB eMMC, RTC, 64 kB EEPROM, 1x RS232, 1x RS485, 1x SATA M.2, 1x CAN 2.0 B gtr., 3x USB 2.0 HOST, 1 x USB 3.0 OTG , 10x ETH 10/100/1000, 2x ETH 10 Gbit, Temperatursensor, 1x PCIe , 2x Mini PCIe (1x SIM Card), Reset-Button, SD-Interface, Power Supply, SD-Card, Accessoires, Cable, Heatspreader, Heatsink
