Starterkit STKxE39C1

Based on TQMxE39C1 Intel Atom® x5/x7 E3900 Apollo Lake-I

The Embedded Starterkit STKxE39C1 is an evaluation kit tailored to embedded computing engineers. It's built on the TQMxE39C1 platform, featuring Intel Atom® x5/x7 E3900 processors (Apollo Lake-I). This kit supports triple display outputs with DP/HDMI (up to 4K UHD) and eDP/LVDS interfaces, delivering impressive visual performance. Powered by dual/quad-core processors capable of speeds up to 2.5 GHz, it is designed for applications in real-time computing, industrial automation, digital surveillance, aviation, medical, and retail. The module follows the international PICMG standard COM Express® Compact (COM.0 R2.1) with type 6 pinout, ensuring compatibility. Additionally, it offers high-resolution graphics output, 3D processing, and robust video encoding and playback, making it suitable for diverse applications.

Features

  • Triple Display Support: Provides support for up to three displays with DP/HDMI (4K UHD) and eDP/LVDS interfaces.
  • Dual/Quad-Core Processors: Equipped with powerful processors capable of speeds up to 2.5 GHz.
  • High-Speed Gigabit Ethernet: Enables efficient high-speed network communication.
  • Compact and Robust Design: Designed for ruggedized applications, with options for protective coating.
  • Flexible Storage: Offers onboard eMMC storage options and flexibility for LVDS or native eDP.

Specifications

CPU
  • Intel Atom® x5/x7 E3900 (Apollo Lake-I)
  • x5-E3930 2x 1.3/1.8 GHz, 6.5 W
  • x5-E3940 4x 1.6/1.8 GHz, 9.5 W
  • x7-E3950 4x 1.6/2.0 GHz, 12 W
Memory
  • DDR3L - 4/8 GB
  • EEPROM - 32kbit
  • eMMC 8-64 GB
Graphics
  • 2x Digital Display Interface (DDI) for DP 1.2a, HDMI 1.4b
  • 1x eDP 1.4/Dual Channel LVDS
Communications Interfaces
  • Ethernet - 1 Gigabit Ethernet (Intel i210)
  • USB - 3x USB 3.0 | 5x USB 2.0
  • Serial Ports - 2x Serial port
Other Interfaces
  • PCIe - 4x PCIe 2.0
  • LPC - LPC
  • I2C
  • SMBus
  • SPI - SPI (for external UEFI BIOS flash)
  • Audio - Intel HD Audio
  • GPIO - 8x GPIO
  • SD Card: 1x SD Card
General
  • Dimensions - 95mm x 95mm
  • Plug-in System - COM Express Compact, Type 6
  • Temperature range - Extended temperature: -40°C…+85°C
  • Power supply - 4.75 V - 20 V / 4.75 V - 20 V Standby (optional) / 3 V Battery for RTC
  • Power consumption - Power: typ. 3 - 8 W/max. 14 W (Green ECO-Off: < 0.1 W)



Ordering Information

TQMxE39C1-AA (“Premium“)

  • Intel Atom x7-E3950 (4x 1.6/2.0GHz, 2MB Cache, 12W TDP), 8GB DDR3L, ECC, LVDS, 0GB eMMC, SDCard, Industrial-Temp. -40..+85°C

TQMxE39C1-AB (“Mainstream“)

  • Intel Atom x5-E3940 (4x 1.6/1.8GHz, 2MB Cache, 9.5W TDP), 8GB DDR3L, ECC, LVDS, 0GB eMMC, SDCard, Industrial-Temp. -40..+85°C

TQMxE39C1-AC (“Entry“)

  • Intel Atom x5-E3930 (2x 1.3/1.8GHz, 2MB Cache, 6.5W TDP), 4GB DDR3L, ECC, eDP, 0GB eMMC, SDCard, Industrial-Temp. -40..+85°C

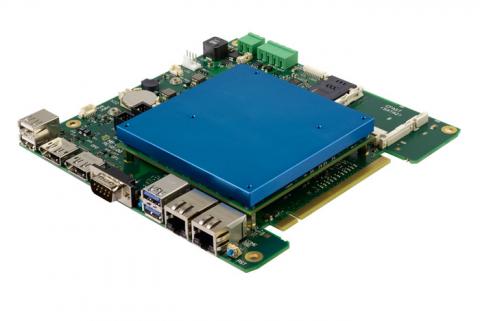

Evaluation platform MB-COME6-1

  • Mainboard for COM Express™ Compact/Basic, Type 6 Interfaces: 2x DP++, eDP/LVDS, 2x Gb ethernet, 2x USB 3.0, 3x USB 2.0, 3x COM, audio, mini PCIe, mSATA, 2,5“ SSD, CFast, riser extension with 2x PCIe and USB, fan, debug, 170 mm x 170 mm
