Terasic Apollo Agilex SOM

Terasic Agilex® SOM Accelerates AI Edge Applications

Designed for high-performance AI-enabled edge solutions and HPC solutions, the Terasic Apollo Agilex SOM board packs unbeatable performance optimization and provides the highest real-time compute/watts for edge AI applications.



Apollo Agilex SOM takes advantage of the latest Intel® Agilex® SoC with 1400K logic elements to obtain performance and power breakthrough (with up to 40% lower power than Stratix 10 series). Combining high-end hardware interfaces such as two high-capacity and high-bandwidth DDR4 SO-DIMM Sockets (up to 32GB DDR4), onboard QSFP28 connector, PCIe Gen 4x16 up to 25.8 Gbps/ch with carrier, on-board USB-Blaster II, and FMC/FMC+ connectors for I/O expansion, the Terasic board delivers more than 2X the performance of previous-generation development kits.

Key Features

  • Agilex® 1.4MLE FPGA with an integrated 1.4GHz quad-core ARM Cortex-A53 processor system
  • Two 72-bit DDR4 ECC SODIMM sockets, microSD card socket, 1Gbits of QSPI configuration flash
  • On-board power regulators and board management system
  • On-board high-speed Interfaces:  FMC/FMC+, QSFP28, GigE, USB2, USB-UART, USB Blaster II
  • PCIe Gen4 x16 interface via the FMC+ connector

Block Diagram

Apollo-Agilex_Web

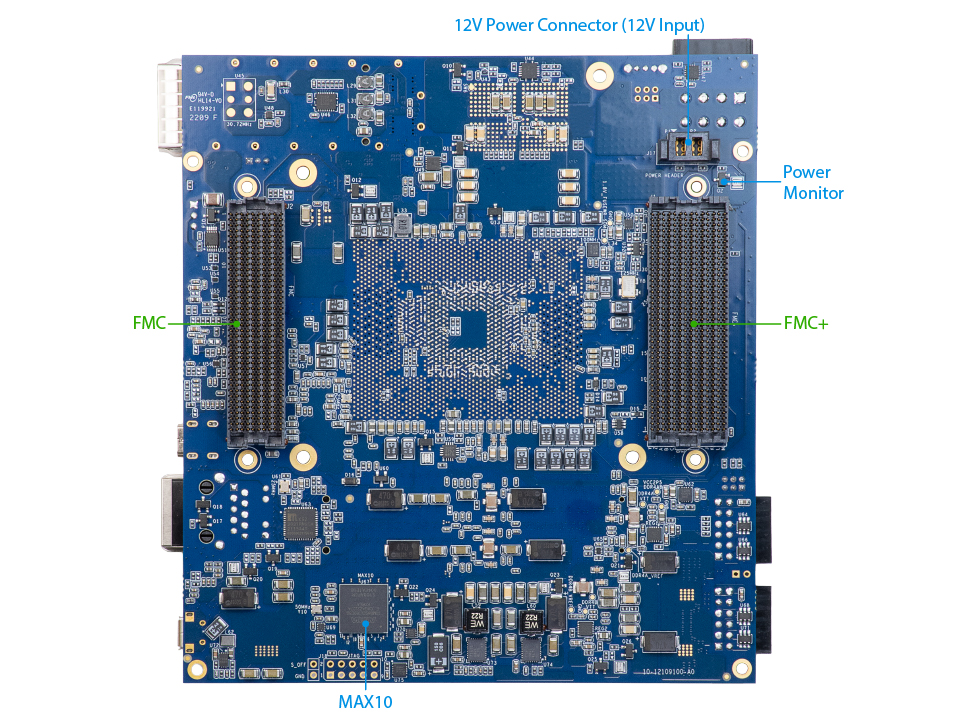

Layout

Apollo-Agilex_Web
Apollo-Agilex_Web

Specifications

Agilex SOM Module

  • FPGA: Agilex AGFB014R24B2E2V (1400K LEs)
  • Interface: FMC and FMC+ connector
  • Dimension: 145 mm x 133 mm
  • Onboard USB-Blaster II
  • Support ASx4 Configure Mode with 1Gbits QSPI Flash
  • Board Management System
    • Power Monitor
    • Temperature Monitor
    • Auto fan Control

FPGA side

  • Two DDR4 SO-DIMM Sockets (each with 72-bit ECC, speed up to 2666MT/s, and size up to 16GB)
  • Onboard QSFP28
  • One FMC+ Connector for FMC/FMC+ Daughter Card
  • One FMC Connector for FMC Daughter Card
  • 1.2V 2x6 GPIO header
  • LED x2, Button x2, DIP Switch x2, CPU Reset Button

HPS side

  • MicroSD Socket
  • One SO-DIMM shared with FPGA
  • Gigabit Ethernet PHY + RJ45
  • USB OTG PHY + Micro USB Connector
  • UART-to-USB
  • RTC
  • LED x1, Button x1, Cold Reset Button
  • 3.3V 2x6 GPIO header for GPIO/SPI/I2C/UART

Software Support

  • FPGA Example Code Linux BSP
