Starterkit STKxE39S

based on TQMxE39S Intel Atom® x5/x7 E3900 Apollo Lake-I

The Embedded Starterkit STKxE39S is an evaluation kit designed for embedded computing engineers. It is built on the TQMxE39S platform, featuring Intel Atom® x5/x7 E3900 processors (Apollo Lake-I). This kit supports triple display outputs with DP/HDMI (up to 4K UHD) and eDP/LVDS interfaces, providing impressive user experiences. With dual/quad-core processors capable of speeds up to 2.5 GHz, it targets small, low-power, and low-cost applications in the embedded mobile market. The module follows the SGET Standard SMARC 2.0, offering high-speed communication interfaces like Gigabit Ethernet, PCIe, USB 3.0, and 6Gbps SATA. It also includes onboard eMMC storage options and flexibility for Dual-Channel LVDS or native eDP, reducing overall BOM cost.

Features

  • Triple Display Support: Offers triple display support with DP/HDMI (up to 4K UHD) and eDP/LVDS interfaces for impressive visuals.
  • Dual/Quad-Core Processors: Equipped with processors capable of speeds up to 2.5 GHz for diverse computing tasks.
  • High-Speed Communication: Provides high-speed communication through Gigabit Ethernet, PCIe, USB 3.0, and 6Gbps SATA.
  • Compact and Low-Power: Designed for small, low-power, and cost-effective embedded mobile applications.
  • Flexible Storage: Features onboard eMMC storage options and flexibility for Dual-Channel LVDS or native eDP.

Specifications

CPU
  • Intel Atom® x5/x7 E3900 (Apollo Lake-I)
  • x5-E3930 2x 1.3/1.8 GHz, 6.5 W
  • x5-E3940 4x 1.6/1.8 GHz, 9.5 W
  • x7-E3950 4x 1.6/2.0 GHz, 12 W
  • Celeron® N3350 2x 1.1/2.4 GHz, 6 W
  • Pentium® N4200 4x 1.1/2,5 GHz, 6 W
Memory
  • DDR4-2/4/8 GB
  • EEPROM - 32kbit
  • eMMC - 8-64 GB
Graphics
  • 1x Digital Display Interface (DDI) for DP 1.2a, HDMI 1.4b
  • 1x eDP 1.4/Dual Channel LVDS
  • 1x HDMI 1.4b
Communications Interfaces
  • Ethernet - 1x Gbti Ethernet
  • USB - 2x USB3.0 | 4x USB 2.0 | 1x USB 2.0 OTG
  • Serial Ports - 2x Serial Port
Other Interfaces
  • PCIe - 4x PCIe 2.0
  • SD Card - 1x SD card
  • I2C
  • SATA - 1x SATA 3.0
  • SPI - SPI (for external UEFI BIOS flash)
  • Audio - Intel HD Audio
  • MIPI - 2x MIPI CSI
General
  • Dimensions - 85mm x 50mm
  • Plug-in System - SMARC 2.0/2.1
  • Temperature range - Standard temperature: 0°C…+60°C
  • Power supply - 4.75 V - 5.25 V, 3 V Battery for RTC
  • Power consumption - typ. 3 - 8 W/max. 14 W (Green ECO-Off: < 0.1 W)



Ordering Information

TQMxE39S-AA

  • Intel® Atom™ E3950, 8GB LPDDR4, 32GB eMMC, -40...+85°C, LVDS

TQMxE39S-AB

  • Intel® Atom™ E3940, 8GB LPDDR4, 32GB eMMC, -40...+85°C, eDPIntel® Atom™ E3930, 4GB LPDDR4, 8GB eMMC, -40...+85°C, LVDS

TQMxE39S-AC

  • Intel® Atom™ E3930, 4GB LPDDR4, 8GB eMMC, -40...+85°C, LVDS

TQMxE39S-AD

  • Intel® Celeron® N3350, 4GB LPDDR4, 8GB eMMC, 0...+60°C, LVDS

TQMxE39S-AE

  • Intel® Pentium® N4200, 8GB LPDDR4, 32GB eMMC, 0...+60°C, eDP

TQMxE39S-AF

  • Intel® Atom™ E3940, 8GB LPDDR4, 32GB eMMC, -40...+85°C, LVDS

TQMxE39S-AG

  • Intel® Atom™ E3950, 8GB LPDDR4, 32GB eMMC, -40...+85°C, eDP

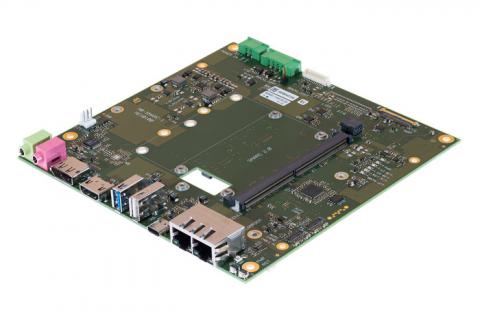

Evaluation Platform MB-SMARC-1

  • Mainboard for SMARC 2.0/2.1 Interfaces: 1x DP++, eDP/LVDS, 2x GB ethernet, 1x USB 3.0, 1x USB 2.0, audio, fan, Debug, 170 mm x 170 mm, HDMI, USB-C, Micro SD-Card, 4 different M.2 sockets

STKxE39S-E

  • Individual Starterkit for TQMxE39S. Includes selected SMARC module, selected mainboard MB-SMARC-1, heatspreader and accessories.
