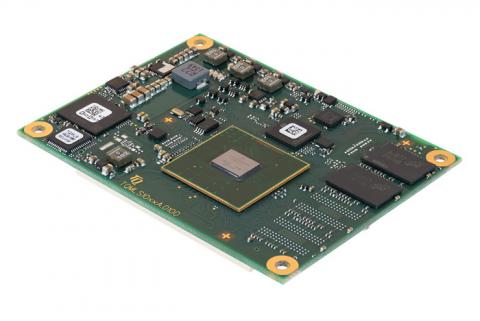

TQMLS1043A Embedded Quad Cortex®-A53 Module

Based on the ARM® Quad Cortex®-A53 and NXP LS1043A processor

The TQMLS1043A is an embedded Quad Cortex-A53 module based on the LS1043A processor from NXP. It offers robust capabilities for various applications such as networking and industrial automation, providing high-speed communication with 10 Gbit Ethernet, 8x Gbit Ethernet, PCIe, and USB 3.0 interfaces. With DDR4 and optional ECC protection, it ensures reliable and secure memory operation. This module features an extended temperature range, making it suitable for harsh environments. It also includes advanced security functions, leveraging the QorIQ Trust Architecture and Arm TrustZone.

Features

  • Quad Cortex-A53 LS1043A processor for efficient processing.
  • Versatile connectivity with multiple Ethernet and USB ports.
  • DDR4 with optional ECC protection for data reliability.
  • Wide temperature range and voltage monitoring for rugged applications.
  • Advanced security features with QorIQ Trust Architecture and Arm TrustZone.



Specifications

CPU
  • CPU/Processor:
    • Cortex®-A53 - Up to 1,6GHz
  • CPU variant:
    • LS1043A Quad Core
    • LS1023A Dual Core
Memory
  • DDR4: Up to 4 GB
    • ECC protection (optional)
  • EEPROM: 0/64-kbit
  • Quad SPI NOR: Up to 512 MB
  • eMMC: Up to 64 GB
Communications Interfaces
  • Ethernet:
    • 1x 10 Gbit Ethernet
    • Up to 10x Ethernet 10/100/1000 Mbit
  • Serial Ports: Up to 4x UART
  • USB: Up to 3x USB 3.0 high-speed HOST interface
Other Interfaces
  • SD Card: Up to 1x SDIO/MMC
  • SATA: Up to 1x SATA 3.0
  • PCIe: Up to 3x PCIe 2.0
  • SPI: Up to 1x SPI
  • I2C: Up to 4x I2C
General
  • Plug-in System: Board-to-board plug-in system 420 pins
  • Temperature range: Extended temperature: -40°C…+85°C
  • Power supply: 5 V
  • General: Temperature sensor
  • Voltage Monitoring
  • Dimensions: 80 mm x 60 mm
OS
  • Linux
  • VxWorks on request

Ordering Information

TQMLS1043A-AA

  • LS1043/1 ,0 GHz, 64MB QSPI NOR Flash, 8GB eMMC, 1GB DDR4+ ECC, 64kB EEPROM , RTC, -40°C- +85°C

TQMLS1043A-AA

  • LS1043/1.0 GHz, 64 MB QSPI NOR Flash, 8 GB eMMC, 2 GB DDR4+ ECC, 64 kB EEPROM, RTC, -40°C...+85°C

STKLS10xxA-AA

  • STKLS10xxA (Eval Kit) mit TQMLS10xx-AA, LS10xxA/ 1,6 GHz, 2GB DDR4, 128MB QSPI NOR Flash, 8GB eMMC, RTC, 64kB EEPROM, 1x RS232, 1x RS485, 1x SATA M.2, 1x CAN 2.0B gtr., 3x USB 2.0 HOST, 1 x USB 3.0 OTG , 10x ETH 10/100/1000, 2x ETH 10 Gigabit, Temperatursensor, 1x PCIe , 2x Mini PCIe (1x SIM Card), Reset-Button, SD-Interface, Power Supply, SD-Card, Accessoires, Cable
