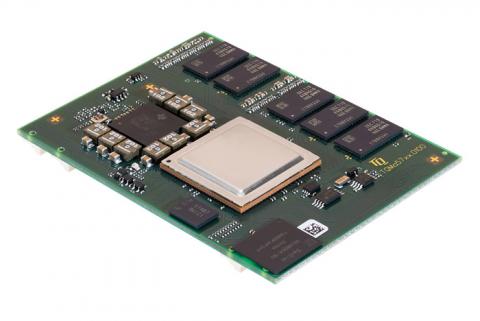

TQMa57xx Embedded Cortex®-A15 module

Based on AM57xx for applications with real-time requirements

The TQMa57xx is an embedded Cortex®-A15 module based on AM57xx, designed for applications with real-time requirements. It offers high-speed communication capabilities, including up to 2xGbE, 4x real-time Ethernet, 2x PCIe, and USB 3.0 support. With low power consumption (typ. 4W) and integrated 2x Cortex M4, it delivers reliable performance. This module also features IEEE 1588 hardware support and security functions, making it ideal for applications in networking, industrial automation, and controls with demands for fast and secure data processing.

Features

  • High-performance graphics with HD support
  • Versatile high-speed communication interfaces, including GbE, real-time Ethernet, PCIe, and USB
  • Low power consumption, offering efficiency in operation
  • Integrated 2x Cortex M4 for additional processing power
  • IEEE 1588 hardware support and robust security functions

Specifications

CPU
  • Cortex®-A15 - Up to 1,5GHz
  • CPU variant:
    • AM571x Single Core
    • AM572x Dual Core
    • AM574x Dual Core
Memory
  • EEPROM: 0/64-kbit
  • DDR3L: Up to 4 GB
    • ECC protection (optional)
  • Quad SPI NOR: Up to 256 MB
  • eMMC: Up to 32 GB
Graphics
  • LCD Interface (24-bit RGB)
  • HDMI-Interface
Communications Interfaces
  • CAN: Up to 2x CAN 2.0 B
  • Serial Ports: Up to 10x UART
  • USB:
    • 1x USB 2.0 high-speed OTG interface
    • Up to 1x USB 3.0 high speed Host
  • Ethernet:
    • Up to 2x Ethernet 10/100/1000 Mbit
    • Up to 4x Ethernet 10/100 (PRU)
Other Interfaces
  • SPI: Up to 4x SPI
  • I2S: Up to 4x I2S
  • SATA: Up to 1x SATA 3.0
  • PCIe: Up to 2x PCIe
  • I2C: Up to 3x I2C
  • SD Card: Up to 2x SDIO/MMC
  • MIPI: Camera sensor interface (2x 24b/2x 8b)
General
  • Power supply: 5 V
  • Temperature sensor
  • Plug-in System: Board-to-board plug-in system 400 pins
  • Dimensions: 75 x 55 mm
  • Temperature range:
  • Standard temperature range: -25°C…+85°C
  • Extended temperature: -40°C…+85°C
OS
  • Linux
  • VxWorks on request
  • QNX on request
  • Android on request

Ordering Information

TQMa5718-AA
  • AM5718/1,5GHz, 8GB eMMC-Flash, 1GB DDR3L-SDRAM, 64kB EEPROM, RTC, -25°C…+85°C

TQMa5728-AA

  • AM5728/1,5 GHz, 8GB eMMC-Flash, 2GB DDR3L, 64kB EEPROM, RTC, -25°C…+85°C

TQMa5748-AA

  • AM5748/1,5GHz, 8GB eMMC-Flash, 2GB DDR3L-SDRAM, 64kB EEPROM, RTC, -25°C…+85°C
STKa57xx-AA
  • STKa57xx (Eval Kit) with TQMa574x-AA, Dual Cortex®-A15/1,5 GHz, 1 GB DDR3L, 8 GB eMMC Flash, 64 kB EEPROM, 1x RS232, 1x RS485, 1x CAN 2.0 B, 1x CAN-FD, 3x USB 3.0 HOST, 1x USB 2.0 OTG, 2x GbE, 2x PRU-ETH, LCD Port, 1x HDMI, LVDS, 2x PCIe, RTC, Temperature sensor, Reset button, SD-Card interface, Audio, Power Supply, 4 GB SD card, Cables
Starterkit STKa57xx set
  • The core of the STKa57xx set is the TQMa57xx module with a Single/Dual Cortex®-A15 CPU. The components contained in the starter kit constitute a modular system enabling you to develop your own product ideas. Development of graphic interfaces can be started immediately using the prepared combination of closed display unit and starter kit that are matched to each other. To develop your own hardware you can use the certified and qualified circuit components of the starter kit in your own designs.
