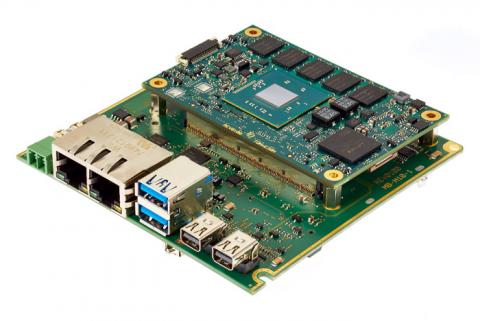

Carrierboard MB-M10-1

COM Express Type 10 (Mini)



The Embedded Carrierboard MB-M10-1, designed for COM Express Type 10 (Mini) modules, offers an ultra-compact and high-performance embedded computing solution. It adheres to the specifications specified by SGeT SDT.03, ensuring compatibility with Embedded NUC (eNUC) standards.



Featuring dual-screen support, this carrierboard provides versatile visualization capabilities for various applications. Its low-profile design is optimized for efficient mechanical and thermal integration, making it suitable for demanding environments.



The MB-M10-1 supports the eDP pinout of the COM Express specification, enhancing display options. It serves as a compact platform for COM Express Type 10 Mini modules and offers expandable functionality with two Mini PCIe slots for additional features.



With two Gbit Ethernet ports, three USB ports (including two USB 3.0), an mSATA slot, and support for Micro SD cards, this carrierboard offers ample connectivity options. It operates within a wide temperature range, from -20°C to +85°C, ensuring reliability in challenging conditions.



The product also includes essential features like power and reset buttons, a PWM-controlled fan, and power-control/status indicators, making it a robust and versatile choice for FPGA engineers seeking a dependable embedded computing platform

Features

  • Dual-Screen Support: Enables simultaneous connection of two displays, enhancing visualization capabilities for diverse applications.
  • Compact Form Factor: Low-profile design optimized for efficient mechanical and thermal integration in space-constrained environments.
  • Versatile Connectivity: Equipped with two Gbit Ethernet ports, three USB ports (including two USB 3.0), an mSATA slot, and Micro SD card support for flexible connectivity.
  • Expandable Functionality: Offers two Mini PCIe slots, allowing for easy integration of additional features and functionality.
  • Wide Temperature Range: Operates reliably in a broad temperature range from -20°C to +85°C, suitable for challenging environmental conditions

Specifications

Graphics
  • 2x Mini DisplayPort with up to 4K
Communications Interfaces
  • Ethernet - 2x Gigabit Ethernet
  • USB -2x USB 3.0/2.0 | 1x USB 2.0
Other Interfaces
  • PCIe - 1x Mini PCIe half or full size
  • SD Card - 1 Micro SD socket
  • SATA - 1x mSATA
General
  • Dimensions - Embedded NUC (eNUC), 100 x 100 mm
  • Plug-in System - COM Express Mini, Type 10
  • Temperature range - Operating temperature: -20°C...+85°C
  • Power supply - 9 V - 36 V / Connector type: Phoenix MC1,5/2-G-3,5



Ordering Information

MB-M10-1-AA

  • Carrierboard for COM Express type 10 mini modules (with eDP pinout configuration). Standard version with two independant screen outputs for BoxPC integration
