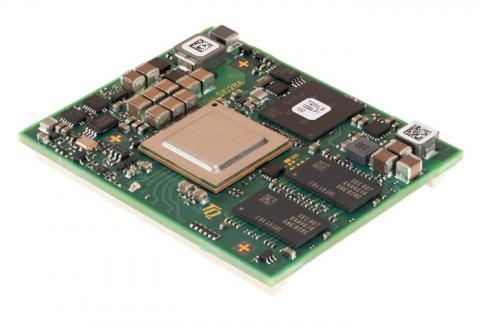

TQMLS1028A Embedded Cortex®-A72 module

Based on LS1028A with 4 Port TSN Gigabit Ethernet Switch for Real-time demands.



The TQMLS1028A is an embedded module powered by the Cortex-A72 processor LS1028A from NXP, combining high-performance Arm architecture with QorIQ communication technology. It offers a 4 Port TSN Gigabit Ethernet Switch, making it ideal for real-time applications. This module supports extended temperature ranges, ensuring reliability in challenging environments. With a low power consumption profile, it's energy-efficient for embedded applications. Security functions are integrated to protect sensitive data.

Features

  • Cortex-A72 processor up to 1.3GHz for high-performance computing.
  • Multiple LS1028A CPU variants to suit different requirements.
  • Graphics capabilities with a 3D GPU and 4K LCD controller.
  • Versatile connectivity options, including USB 3.0, CAN, and Ethernet.
  • Board-to-board plug-in system, compact form factor, and wide temperature range.

Specifications

CPU
  • CPU/Processor:
    • Cortex®-A72 - Up to 1,3GHz
  • CPU variant:
    • LS1028A Dual Core
    • LS1027A Dual Core
    • LS1018A Single Core
    • LS1017A Single Core
Memory
  • Quad SPI NOR: Up to 512 MB
  • eMMC: Up to 64 GB
  • DDR4: Up to 8 GB
  • ECC protection (optional)
  • EEPROM: 0/256 kbit
Graphics
  • 3D GPU
  • 4K LCD Controller with eDP/DP Phy
Communications Interfaces
  • Serial Ports:
    • Up to 6x UART
    • Up to 6x SAI
  • Ethernet:
    • 1x 4 Port TSN Gbit Ethernet Switch
    • Up to 1x Ethernet 2.5 Gbit
    • Up to 1x Ethernet 1 Gbit
  • CAN: Up to 2x CAN 2.0 B
  • USB: 2x USB 3.0
Other Interfaces
  • SPI: Up to 2x SPI
  • I2C: Up to 8x I²C
  • SATA: Up to 1x SATA 3.0
  • PCIe: Up to 2x PCIe 3.0
  • SD Card: Up to 2x SDIO/MMC
General
  • Power supply: 5 V
  • Temperature range: Extended temperature: -40°C…+85°C
  • Dimensions: 55 x 44 mm
  • Plug-in System: Board-to-board plug-in system 240 pins
OS
  • Linux

Ordering Information

TQMLS1028A-AA

  • TQMLS1028A, Dual Cortex®-A72/1,3 GHz, 64 MB NOR Flash, 8GB eMMC Flash, 1GB DDR4, 64kB EEPROM, -40°C…+85°C

TQMLS1018A-AA

  • TQMLS1018A, Single Cortex®-A72/1,3 GHz, 64 MB NOR Flash, 8GB eMMC Flash, 1 GB DDR4,
    64kB EEPROM, -40°C …+85°C

TQMLS1017A-AA

  • TQMLS1027A, Dual Cortex®-A72/1,3 GHz, 64 MB NOR Flash, 8GB eMMC Flash, 1GB DDR4,
    64kB EEPROM, -40°C …+85°C
TQMLS1027A-AA
  • TQMLS1017A, Single Cortex®-A72/1,3 GHz, 64 MB NOR Flash, 8GB eMMC Flash, 1 GB DDR4, 64kB EEPROM, -40°C …+85°C

STKLS1028A-AA

  • STKLS1028A (Eval Kit) with TQMLS1028AA or TQMLS101027A/Dual Cortex A72/1,3 GHz, 1GB DDR4, 64MB QSPI NOR Flash, 8GB eMMC, 64kB EEPROM, RTC, 2x CAN 2.0B gtr., 2x USB 3.0 HOST, 1 x USB 3.0 OTG , 2x ETH 10/100/1000, 4x Gigabit Ethernet TSN Switch, 1x M.2 SATA, 1x Display Port, 1x Mini PCIe + SIM, Reset-Button, Micro SD-Interface, 1x USB Debug, Power Supply, SD-Card, Accessoires, Cable
