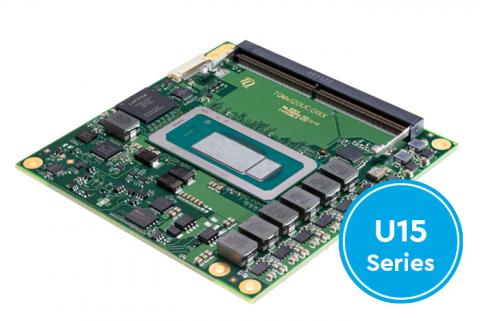

TQMx130UC COM Express® Compact Type 6 Module

13th Generation Intel® Core™ Processors



The TQMx130UC is a formidable COM Express® Compact Type 6 Module, powered by 13th Generation Intel® Core™ Processors (codenamed Raptor Lake-P / U15 series). Tailored to meet the needs of FPGA engineers, this module offers a compelling set of features.



Driven by Intel's Performance-Hybrid-Technology, it combines Performance-Cores and Efficient-Cores, delivering impressive multi-threaded performance. The U15 Ultra-Low-Power Series, with a TDP range of 12/15/28 W, offers FPGA engineers access to up to 10 CPU Cores (2P+8E) and a powerful GPU equipped with 96 Execution Units. This configuration strikes a balance between performance and power efficiency.



Memory configuration flexibility is crucial for FPGA engineers, and the TQMx130UC supports DDR5-5200 SO-DIMM memory configurations of up to 64 GB, catering to the demands of data-intensive FPGA applications. Additionally, it incorporates AI-Boost with VNNI + DP4a instruction sets, enabling FPGA engineers to optimize inferencing and deep learning tasks.



In terms of graphics capabilities, this module stands out by facilitating four simultaneous 4K high-resolution display outputs or 1x 8K support, ideal for FPGA applications that require advanced visualization.



Connectivity options are comprehensive, with 2.5 Gigabit Ethernet, ultra-high-speed PCIe, USB-C, and MIPI-CSI x4 support.



Designed for reliability in embedded and industrial environments, it operates under extreme conditions, offering an extended temperature option down to -40°C. Moreover, it ensures a seamless upgrade path through pin-to-pin compatibility with its predecessor, the TQMx120UC.



In summary, the TQMx130UC is a robust and efficient computing solution tailored to meet the specific needs of FPGA engineers, offering an excellent balance between performance, power efficiency, memory flexibility, and connectivity options for a wide range of FPGA applications.

Features

  • Hybrid Performance Technology:  Performance-Cores and Efficient-Cores for versatile multi-threaded performance.

  • Ultra-Low-Power Series: Operates within a power-efficient TDP range of 12/15/28 W; a powerful GPU for energy-efficient yet capable computing.

  • Memory Flexibility: Supports DDR5-5200 SO-DIMM memory configurations of up to 64 GB

  • AI Acceleration: AI-Boost and VNNI + DP4a instruction sets, empowering FPGA engineers to optimize AI tasks.

  • Advanced Graphics: Facilitates multiple high-resolution display outputs

Specifications

CPU
  • Intel Core i7-1365UE (10-Core) 2P+8E / 96 EU / 12 MB, up to 4.9 GHz (Embedded Use Conditions)
  • Intel Core i5-1345UE (10-Core) 2P+8E / 80 EU / 12 MB, up to 4.6 GHz (Embedded Use Conditions)
  • Intel Core i5-1335UE (10-Core) 2P+8E / 80 EU / 12 MB, up to 4.5 GHz (Embedded Use Conditions)
  • Intel Core i3-1315UE (6-Core) 2P+4E / 64 EU / 10 MB, up to 4.5 GHz (Embedded Use Conditions)
  • Intel U300E (5-Core) 1P+4E / 48 EU / 8 MB, up to 4.3 GHz (Embedded Use Conditions)
  • Intel Core i7-1366URE (10-Core) 2P+8E / 96 EU / 12 MB, up to 4.9 GHz (for FUSA/FSEDP)
  • Intel Core i7-1365URE (10-Core) 2P+8E / 96 EU / 12 MB, up to 4.9 GHz (Industrial Use Conditions, Extended Temp.)
  • Intel Core i5-1345URE (10-Core) 2P+8E / 80 EU / 12 MB, up to 4.6 GHz (Industrial Use Conditions, Extended Temp.)
  • Intel Core i3-1315URE (6-Core) 2P+4E / 64 EU / 10 MB, up to 4.5 GHz (Industrial Use Conditions, Extended Temp.)
Memory
  • DDR5-5200 - 64 GB (2 SO-DIMMs)
  • EEPROM - 32kbit
Graphics
  • 3x DP/DP++ 1.4a with up to 8K / HDMI
  • Up to 4 independent 4K display outputs
  • 1x eDP 1.4b or dual channel LVDS interface
Communications Interfaces
  • Ethernet - 2.5 Gigabit Ethernet (Intel i226)
  • USB - 4x USB 3.2 Gen2 (up to 10 Gb/s) with USB 3.0 compatibility
  • SATA - 2x  SATA 3.0 (up to 6 Gb/s)
Other Interfaces
  • PCIe - PCIe Gen4 (up to 16 Gb/s per Lane) (x4 + x4)
  • LPC - LPC/eSPI
  • I2C
  • SMBus
  • SPI - SPI (for external UEFI BIOS flash)
  • UART - 2x UART (Rx/Tx) (4-wire optional)
  • GPIO - 8x GPIO through TQ-flexiCFG
  • MIPI - (4 lanes) on extra 22-pin connector (configuration option)
General
  • Dimensions - 95mm x 95mm
  • Plug-in System - COM Express Compact, Type 6
  • Temperature range - Standard temperature: 0°C…+60°C (HE versions)
  • Power supply - 8.5 ... 20 V, 5 V Standby (optional), 3 V Battery for RTC
  • Power consumption - typ. 15 W / max. TBD
OS
  • Windows 10 / Windows 10 IoT Enterprise
  • Windows 11 (restricted support)
  • Linux
