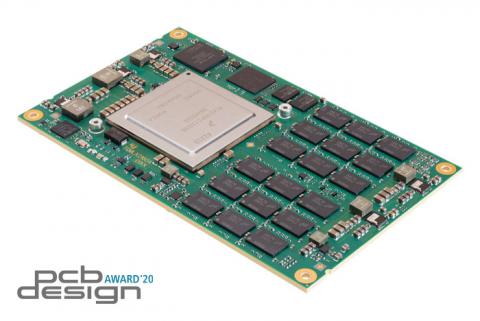

TQMLX2160A Embedded Cortex®-A72 module

Based on LX2160A with enhanced data and networking performance



The TQMLX2160A Embedded Module, powered by the NXP Layerscape LX2160A processor, is tailored for embedded computing engineers. This Cortex-A72-based module excels in data and networking performance with features like 10G/100G Ethernet, 24x SerDes lanes for high-speed communication, DDR4 with ECC support, a 100Gb/s Data Compression Engine, and various connectivity interfaces. Engineers can choose from three CPU variants with 8, 12, or 16 Cortex-A72 cores to suit their requirements. This compact module ensures fast data communication with an array of interfaces and is equipped with robust memory options. Integrated security functions bolster data protection, making it ideal for demanding applications.

Features

  • 10G/100G Ethernet for high-speed networking
  • 24x SerDes lanes for versatile data communication
  • DDR4 with ECC support
  • 100Gb/s Data Compression Engine for efficient data handling
  • Multiple connectivity interfaces, including USB 3.0 and PCIe Gen4

Specifications

CPU
  • CPU/Processor:

  • Cortex®-A72 - Up to 2,2GHz
  • CPU variant:

  • LX2080A 8x A72
  • LX2120A 12x A72
  • LX2160A 16x A72
Memory
  • eMMC: Up to 64 GB
  • 2x DDR4-SDRAM: Up to 64 GB
  • Quad SPI NOR: Up to 512 MB
  • EEPROM: 0/64-kbit
Communications Interfaces
  • Ethernet:
    • Up to 2x Ethernet 10/100/1000 Mbit
    • Up to 2x 40/50/100 G-Ethernet
    • Up to 16x 1/2.5/10/25 G-Ethernet
  • Serial Ports: Up to 2x UART
  • USB: Up to 2x USB 3.0 OTG interface
  • CAN: Up to 2x CAN FD
Other Interfaces
  • SPI: Up to 3x SPI
    • Up to 1x QSPI (8-bit)
  • GPIO: Up to 32x GPIO
  • SATA: Up to 4x SATA 3.0
  • SD Card: Up to 2x SDIO/eMMC
  • I2C: Up to 6x I2C
  • PCIe: Up to 6x PCIe Gen3 (up to 24 lanes)
General
  • Power supply: 5 V
  • Dimensions: 126 mm x 78 mm
  • Temperature sensor
  • Voltage Monitoring
  • Plug-in System: Board-to-board plug-in system 560 pins 0.5 mm Pitch
  • Temperature range:
    • Standard temperature range: -25°C…+85°C
    • Extended temperature: -40°C…+85°C
OS
  • Linux
  • on request: VxWorks

Ordering Information

TQMLX2160A-AA
  • TQMLX2160A-AA, 16 Cortex®-A72/2.2 GHz, 8 GB eMMC Flash, 128 MB QSPI NOR, 32 GB DDR4, + ECC, 64 kB EEPROM, RTC, -40°C...+85°C

TQMLX2120A-AA

  • TQMLX2120A-AA, 12 Cortex®-A72/2.2 GHz, 8 GB eMMC Flash, 128 MB QSPI NOR, 32 GB DDR4, + ECC, 64 kB EEPROM, RTC, -40°C...+85°C

TQMTQMLX2080A-AALX2120A-AA

  • TQMLX2080A-AA, 8 Cortex®-A72/2.2 GHz, 8 GB eMMC Flash, 128 MB QSPI NOR, 32 GB DDR4, + ECC, 64 kB EEPROM, RTC, -40°C...+85°C, Other configurations on request

STKLX2160A-AA

  • STKLX2160A (Eval Kit) with TQMLX2160A-AA, 16x Cortex®-A72/2.2 GHz, 32 GB DDR4, + ECC, 8 GB eMMC Flash, 64 kB EEPROM, RTC, 2x CAN FD separated, 2x USB 3.0 HOST, 10x ETH 10/100/1000, 2x 10 Gbit Ethernet, 1x 100 Gbit Ethernet, 2x PCIe Gen4 (x4), 1x Mini PCIe + SIM Card, 1x M.2 SATA, 1x SATA 2.5”, 1x SD-Card, Temperature sensor, Reset-Button, Power Supply, 8 GB SD Card, Cables, Heatspreader, Heatsink
