ET860
Power and Reliability in Extreme Conditions: The Intel® Atom® E3845/E3827 COM Express Type-6 CPU Module
The Intel® Atom® E3845/E3827 COM Express Type-6 CPU Module is a high-performance, low-power computing solution designed for a wide range of industrial applications. It is equipped with the Intel® Atom® Processor E3845/E3827, supporting up to 8GB of DDR3L memory for efficient multitasking. The module offers robust connectivity options, including a single Gigabit LAN, 2x SATA II, and multiple USB ports for comprehensive peripheral integration. It supports two independent displays through DisplayPort, CRT, and LVDS, enhancing multimedia capabilities. Designed for durability, it operates reliably in extreme temperatures ranging from -40°C to 85°C, making it suitable for challenging environmental conditions.
Features
- Intel® Atom® Processor: Utilizes the Intel® Atom® Processor E3845/E3827 for energy-efficient, yet powerful performance.
- Memory Capacity: Supports up to 8GB of DDR3L@1.35V SO-DIMM memory, facilitating robust multitasking and processing.
- Display Support: Enables two independent displays with options for DisplayPort, CRT, and LVDS, offering versatile display solutions.
- Wide Temperature Range: Operates within a wide temperature range of -40°C to 85°C, ensuring reliability in harsh conditions.
- Comprehensive Connectivity: Includes a single Gigabit LAN, multiple USB ports, and 2x SATA II, providing a broad range of connection options.
Specifications
Component | Specification |
CPU | Intel® Atom® Processor E3845/E3827 |
PCH | Integrated in Intel® Atom® SoC |
Memory | 2x DDR3L@1.35V SO-DIMM, Max. 8GB (Non-ECC) |
BIOS | AMI |
Watchdog Timer | 256 levels |
H/W Monitor | Yes |
Storage Device Interface | N/A |
Expansion Slots | 1x PCI-E(x1) |
Graphics Controller | Intel® Atom® E3845/E3827 SoC integrated graphics Supports CRT, DisplayPort & LVDS |
Video Output | 24-bit single-channel LVDS on carrier board (IP411) |
Ethernet | 1x Intel® I210IT Gigabit LAN |
I/O Chipset | Nuvoton NCT5523D |
Serial Port | 2x COM ports (Tx/Rx only) |
USB 2.0 | 8x USB 2.0 via carrier board (Supports 6x USB 2.0 only on IP411) |
USB 3.X | 1x USB 3.0 via carrier board (IP411) |
Serial ATA | 2x SATA III ports via carrier board (IP411) |
Audio | Intel® Atom® E3845/E3827 SoC built-in audio with Realtek ALC662 or ALC888S codec on carrier board (IP411) |
TPM | N/A |
Others | MicroSD slot on board@ rear side Digital I/O (4-in / 4-out) on carrier board (IP411) |
Dimensions (L X W) | 95mm x 95mm (3.74" x 3.74") |
Power Consumption | Intel® Atom® E3845 1.91GHz w/ 2x 2GB DDR3L-1600 +12V: 0.91A; +5V: 0.13A; +5VSB: 0.05A; +3.3V: 0.24A |
Operating Temperature | -40°C~85°C (-40°F~185°F) |
Storage Temperature | -40°C~90°C (-40°F~194°F) |
Relative Humidity | 90% (non-condensing @60°C) |
Ordering Information
Model | Description |
ET860-i45-LV | COM Express (Type-6) CPU Module w/ Intel® Atom® Processor E3845 (1.91GHz) SoC, DDR3L dual-channel memory, LVDS |
ET860-i27-LV | COM Express (Type-6) CPU Module w/ Intel® Atom® Processor E3827 (1.75GHz) SoC, DDR3L dual-channel memory, LVDS |

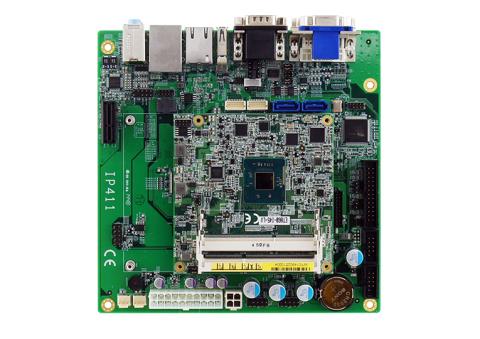

IP411 | Mini-iTX COM Express (Type-6) Carrier Board |
HSET860-BGA-A | Heatsink for ET860 |
HSET860-BGA-1 | Heat Spreader for ET860 |
