IP & Software
Macnica offers various types of IP and software for FPGAs and embedded applications with in-depth technical support and design services.
FPGA IP Cores
| Sensor Interface IP | Descriptions |
|---|---|
| SLVS-EC RX | Image sensor interface (Rx side) to Sony CMOS image sensors |
| Display Interface IP | Descriptions |
|---|---|
| HDMI 2.0 | High-speed interface compliant with HDMI 2.0 standard |
| V-by-One HS | High-speed serial interface compliant with V-by-One HS standard by THine Electronics |
| Video/Graphics IP | Descriptions |
|---|---|
| Rotates video in 90-degree increments | |
| A collection of Intel FPGA intellectual property (IP) functions that you can use to facilitate the development of custom video and image processing designs. | |
| Video Analytics Library | Functions for different types of histogram displays plus a video rotate function. |
| OSD Color Palette | Converts 8bpp Avalon Streaming video from a Frame Reader or other component into a 24- or 32-bpp video stream via a programmable color palette. |
| Stereo Camera Range Imager | High-speed 3D distance measurement technology for ADAS and robotics applications |

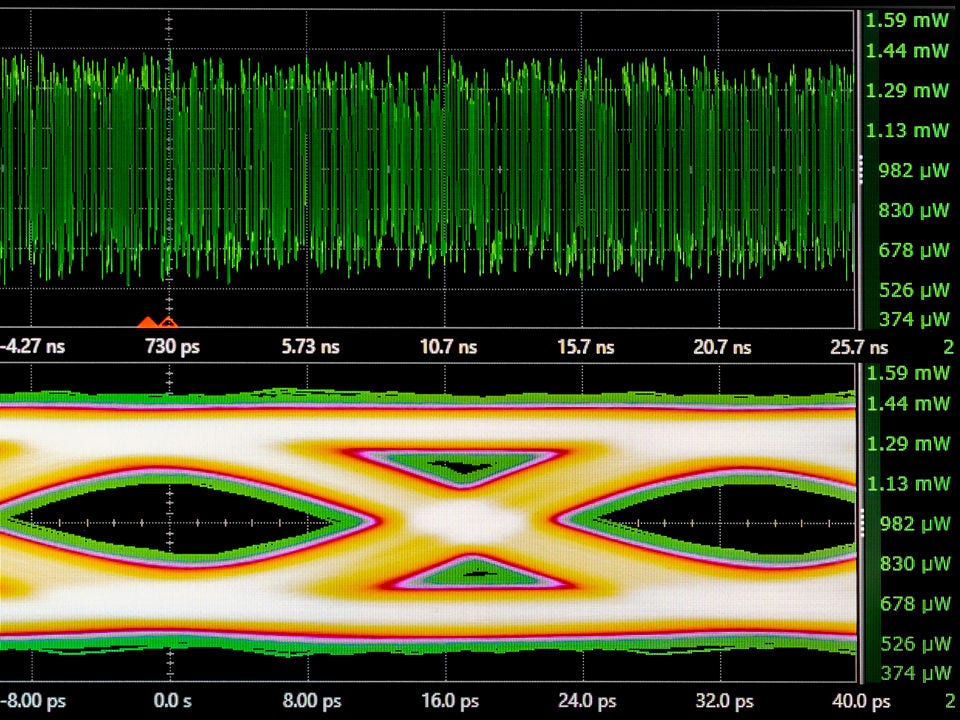

| High-Speed Serial IO IP | Descriptions |
|---|---|
| ION 64b/66b High-Speed Serial IF | High-speed serial interface (13.5 Gbps max.) using a lightweight protocol |
| ION 8b/10b High-Speed Serial IF | High-speed serial interface (8 Gbps max.) using a lightweight protocol |

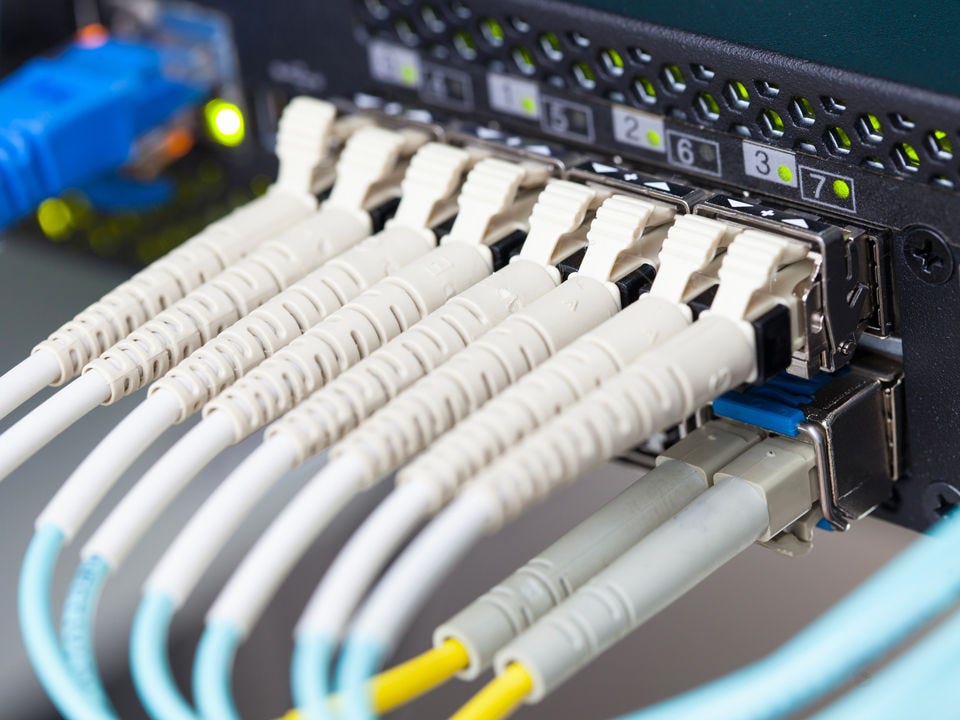

| High-Speed Networking IP | Descriptions |
|---|---|
| 10G MAC Lite | Simple to use, light version of a 10Gb Ethernet MAC, perfect for chip-chip or backplane communications |
| MDIO | Clause 22, and Clause 45 compliant MDIO slave which can be wrapped for implementation in Intel Qsys based designs |

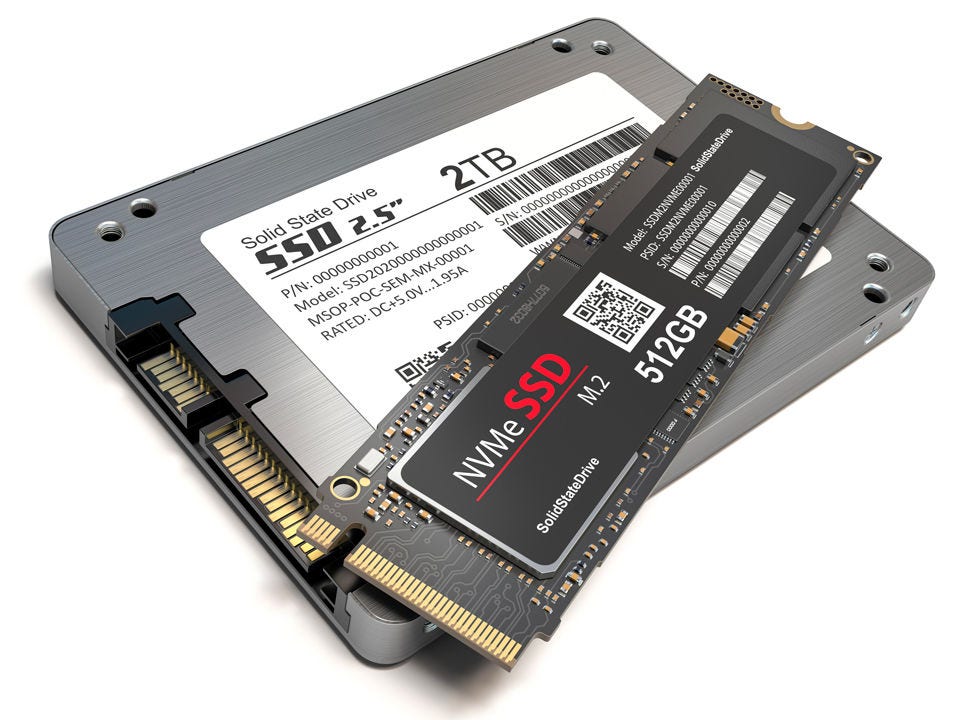

| Storage Access & Transport Protocol IP | Descriptions |
|---|---|
| NVMe IP Core | Standalone NVMe Host Controller with built-in optimized PCIe Bridge and Internal Memory Buffer, designed to handle NVMe Protocol without CPU/OS and External DDR memory. It’s recommended for applications that require high performance, high storage capacity, in very compact systems, and easily supports multiple NVMe SSDs. |
| muNVMe IP Core | Designed and optimized for multiple data stream access to single NVMe SSD by multiple users simultaneously. muNVMe-IP can achieve close to SSD's maximum possible throughput for both mixed read/write and same direction access. This IP is recommended for the application that requires high performance & multiple data streaming or sequential access over single NVMe SSD by pure hardware logic without CPU/OS. Customization to increase the number of users is possible upon customer's requirements. |
| Industrial Vision IF Protocol | Descriptions | |
|---|---|---|
| CoaXPress 1.1 Device Package | High-speed image transmission at 6.25Gbps via coaxial cable | |
Software Solutions
| Function | Descriptions |
|---|---|
| Icetana | AI-driven video analytics surveillance software designed to automatically identify unusual or unexpected events in real-time. Allowing security operators to move from reacting to situations to working proactively to prevent them. |
| RTOS for IoT (Scorpius™) | Multi-task real-time OS for small embedded devices |
| VAS-100 | AI-based real-time video analytics |

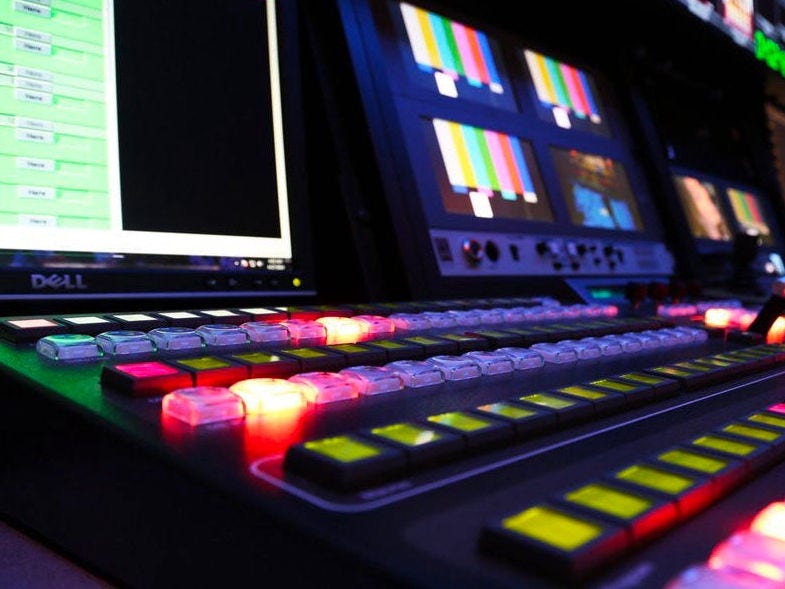

Live Video Transport IP by Macnica Technology
| Function | Descriptions |
|---|---|
| SMPTE ST 2022-1/2/5/6/7 | Series of IP cores to support video over IP (Internet protocol) network based on SMPTE ST 2022 standards |
| SMPTE ST 2110 | IP core to support the family of ST 2110 standards for multi-stream video and audio media delivery systems including time synchronization |
| SMPTE ST 2059-1/2 time synchronization | IP core compliant with ST 2059-1/2 standards that allow accurate time synchronization of media streams |
